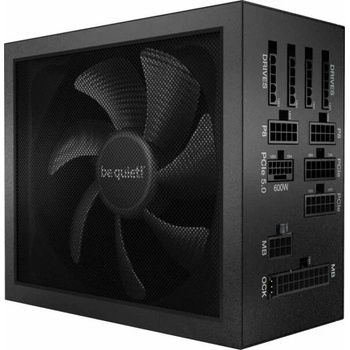

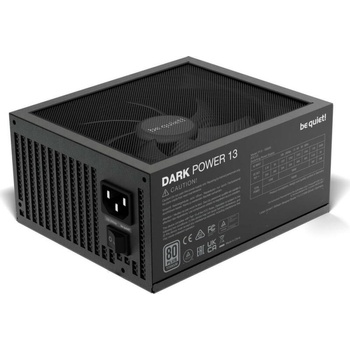

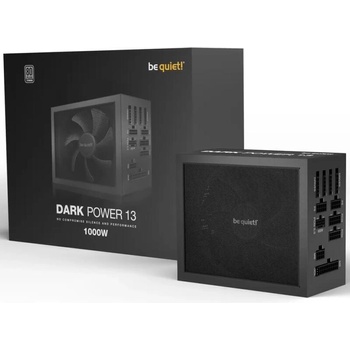

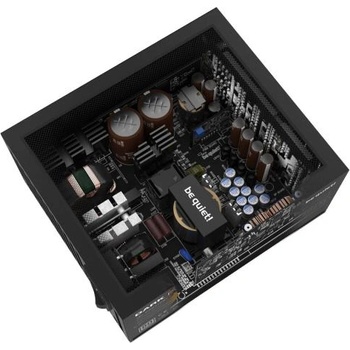

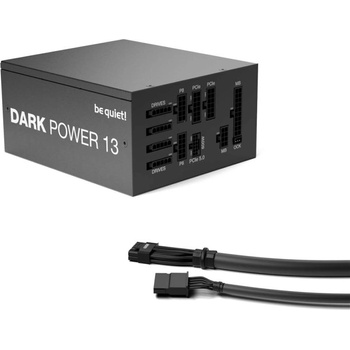

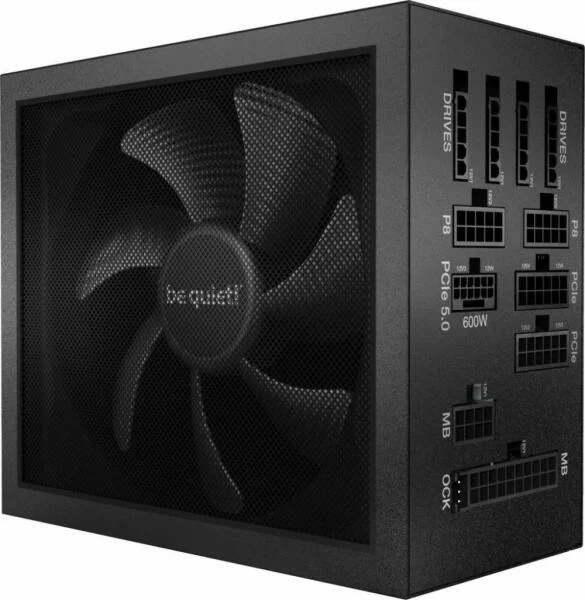

be quiet! Dark Power 13 1000W 80 PLUS Titanium (BN335)

•
  General data


Model
Dark Power 13 1000W

Continuous power (W)
1000

Peak power (W)
1100

Form factor
Version 3.0

Form factor EPS 12V
Version 2.92

Topology
Active Rectifier + Full bridge + LLC + SR + DC/DC

Digitally controlled
-

Voltage (Vac)
100 - 240

Frequency (Hz)
50 - 60

Input current (A)
13 / 6

Power factor at 100% load
>0.98

Modern standby
✓

Power consumption in standby (W)
100,000

Operating temperature up to (°C)
40

•
  Efficiency


80 PLUS certification
Titanium

Efficiency (%) at 230V, 2% load
72.0

Efficiency (%) at 230V, 10% load
90.7

Efficiency (%) at 230V, 20% load
94.8

Efficiency (%) at 230V, 50% load
95.2

Efficiency (%) at 230V, 100% load
93.3

•
  Fan and cooling technology


Fan
Silent Wings

Fan size (mm)
135

Bearing technology
FDB

Motor technology
6-pole fan motor

Max. fan speed (rpm)
1800

dB(A) at 10% load
8.1

dB(A) at 20% load
8.1

dB(A) at 50% load
8.6

dB(A) at 100% load
25.8

•
  Output


Multi-rail operation (12V rails)
4

12V single rail operation
✓

Overclocking key
✓

+3.3V (A)
25

+5V (A)
25

+12V1 (A)
32

+12V2 (A)
32

+12V3 (A)
40

+12V4 (A)
40

+12V5 (A)
-

+12V6 (A)
-

-12V (A)
0.5

+5Vsb (A)
3

Max. combined power 12V (W)
996

Max. combined power 3.3V + 5V (W)
125

Hold-up time at 100% load (ms)
23.2

Power good signal (ms)
100 - 150

•
  Cables and connectors


Modular cables
✓

Sleeved cables
✓

Flat cables
-

Maximum cable length (cm)
105

Cable length to motherboard (cm)
60

No. of cables
12

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

P4 (CPU)
-

12VHPWR cable / W
1 / 600

PCI-e 6+2-pin (GPU)
4

PCI-e 6-pin (GPU)
-

SATA
13

PATA
3

FDD (Floppy)
-

•
  Protection


OTP (over temperature protection)
✓

OCP (over current protection)
✓

OPP (over power protection)
✓

SCP (short circuit protection)
✓

OVP (over Voltage protection)
✓

UVP (under Voltage protection)
✓

SIP (Surge & Inrush Protection)
✓

•
  Safety certification


BSMI
✓

CB
✓

CCC
-

CE
✓

cRUus
-

cTUVus
✓

CU
✓

FCC
✓

RCM
✓

TÜV
✓

UKCA
✓

•
  Casing


Dimensions without cable (L x W x D), (mm)
175 x 150 x 86

Weight (kg)
2.03

Color
Black
