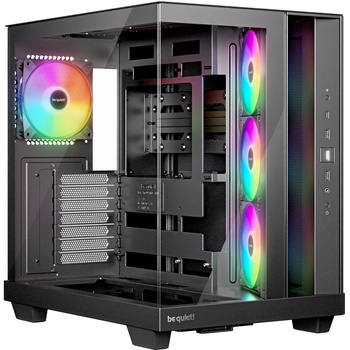

be quiet! Light Base 500 LX Black (BGW85)

be quiet! Light Base 500 LX



ELEVATED ELEGANCE

Cool design, cooler GPU

The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat triangular cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

4 PREINSTALLED LIGHT WINGS LX

Wait, how many fans?!

Light Base 500 LX Black features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm, the fans on the side are Light Wings LX 120mm PWM fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.

SPACIOUS DESIGN

Size matters after all

Light Base 500 LX Black might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...

... Party in the back!

The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

YES TO ARGB

Join the light side

For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX Black adds a touch of sophistication to the core design thanks to the included Light Wings LX fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.



Technical data



General data

Model LIGHT BASE 500 LX | BlackColor option BlackMotherboard compatibility ATX / M-ATX / Mini-ATXCase size excl. stands (L x W x H), (mm) 432 x 305 x 410Case size incl. stands (L x W x H), (mm) 432 x 305 x 436Volume (l) 49,6PSU form factor ATX PS/2Net weight (kg) 10,95Expansion slots 7



Pre-installed fans

Fan at top -Fan at front -Fan at side 3x Light Wings LX Reverse 120mm PWM BlackFan at rear 1x Light Wings LX 120mm PWM BlackFan at bottom -Dimensions (L x W x H), (mm) 120 x 120 x 25Fan speed at 100% PWM / 12V (rpm) 1600 | 1500Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5Air Pressure at 100% PWM / 12V (mm H2O) 1.34Noise level at 100% PWM / 12V (dB(A)) 25.5Voltage range (V DC) 5 - 13.2Input power (W) 3.8Input current (A) 0.32Connector 4-pin PWMLifespan (h / 25°C) 60,000Fan controller 2x 12 Ports



Maximum fan installation

Maximum fans 10Top (mm) 2x 140 / 3x 120Front (mm) -Side (mm) 3x120Rear (mm) 1x 120 / 1x 140Bottom (mm) 3x 120PSU shroud -



Optional radiator installation

Top (mm) 120 / 240 / 280 / 360Front (mm) -Side (mm) 120 / 240Rear (mm) 120Bottom (mm) -



PSU compatibility

Maximum dimensions excl. bottom fan (mm)
