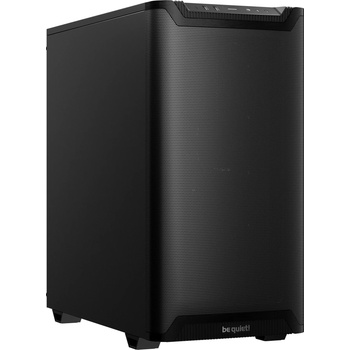

be quiet! Pure Base 501 Airflow Black (BG074)

be quiet! Pure Base 501 Airflow

REDUCED TO THE MAX

Classic appearance

Without any distractions, Pure Base 501 Airflow Black is reduced to excel at its core functions and is aimed at users that appreciate an
unagitated presentation.

PERFECT CASE FAN

Fan blades optimized for high airflow

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.

MORE THAN MEETS THE EYE

Generous space for high-end hardware

Despite its compact dimensions, Pure Base 501 Airflow Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.

WAY UP!

With rotatable PCIe slots

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.

INVENTORY MANAGEMENT

With smart cable routing options

As a compact PC case, Pure Base 501 Airflow Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.

CONNECT WITH ME

State-of-the-art technology for your system

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.

Specifications

 General data

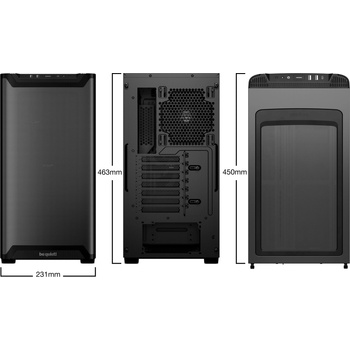

Model Pure Base 501 Airflow BlackColor option BlackMotherboard compatibility ATX / M-ATX / Mini-ATXCase size excl. stands (L x W x H), (mm) 450 x 231 x 449Case size incl. stands (L x W x H), (mm) 450 x 231 x 463Volume (l) 24.4PSU form factor ATX PS/2Net weight (kg) 6.8Expansion slots 7Pre-installed fansFan at top -Fan at front 1x Pure Wings 3 140mm PWMFan at side -Fan at rear 1x Pure Wings 3 140mm PWMFan at bottom -Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140Fan speed at 100% PWM / 12V (rpm) 1200Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5Air Pressure at 100% PWM / 12V (mm H2O) 0.96Noise level at 100% PWM / 12V (dB(A)) 21.9Voltage range (V DC) 5 - 13.2Input power (W) 3.6Input current (A) 0.06Connector 4-pin PWMLifespan (h / 25°C) 80,000Fan controller -Maximum fan installationMaximum fans 6Top (mm) 2x 140 / 2x 120Front (mm) 2x 140 / 3x 120Side (mm) -Rear (mm) 1x 140 / 1x 120Bottom (mm) -PSU shroud -Optional radiator installationTop (mm) 120 / 240Front (mm) 120 / 140 / 240 / 280 / 360Side (mm) -Rear (mm) 120 / 140Bottom (mm) -PSU compatibilityMaximum dimensions excl. bottom fan (mm) 180Maximum dimensions incl. bottom fan (mm) 180Graphics cardHDD cage (in height of graphics card) installed (mm) 368HDD cage (in height of graphics card) removed (mm) 368Maximum PCIe slots with vertical graphics card (pcs. ) 5Drive bay capacity5.25 bays (pcs. ) -3.5 slots (scope of delivery) 23.5 slots (max. ) 22.5 slots (scope of delivery) 52.5 slots (max. ) 5CoolingMax. construction height of CPU cooler unit (mm) 178Airflow channel -LightingLED illumination -LEDs (pcs. ) -LED type -LEDs synchronizable with controller/motherboard -I/O PanelUSB 3.2 Gen. 2 Type C 1USB 3.2 Type A 2USB 2.0 -HD Audio I/O Mic + AudioQi charger / Quick Charging Option (W) -Insulation and dampingTop panel insulation mats -Front panel insulation mats -Side panel insulation mats YesAnti-vibration decoupled HDD YesAnti-vibration decoupled fan YesAnti-vibration decoupled PSU YesAnti-vibration decoupled motherboard-tray YesRemoveable dust filtersTop 1Front 1Side -Bottom 1
