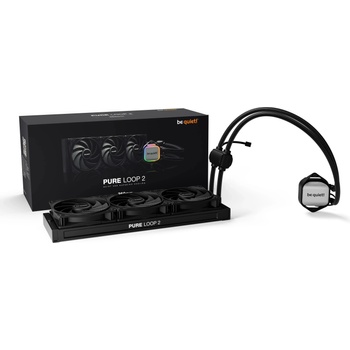

be quiet! Pure Loop 2 360mm (BW019)

be quiet! Pure Loop 2 360mm

Pure wings 3 fans

Performant, yet quiet operation

3 Pure Wings 3 120mm PWM high-speed fans provide high air pressure to efficiently cool the liquid of the Pure Loop 2 360mm radiator. The fans also come with a closed loop motor function. This feature always keeps a steady fan speed, no matter the resistance – ideal for radiators. Despite their performance, Pure Wings 3 offer very quiet operation. Even at maximum speed, the fans operate at only 36.8dB(A).

Doubly decoupled pwm-pump

Adjustable and silent operation

The doubly decoupled PWM-pump runs smoothly and silent. Due to the PWM control the pump speed can be adjusted for silent as well as powerful operations. Thanks to the effective damping the pump causes even less noise and minimal vibration. This is the key to provide the well-known silent be quiet! operation.

Specifications

General data
Dimensions radiator, incl. fan (H x W x D), (mm): 397 x 120 x 52
Dimensions Cooling block (H x W x D), (mm): 94.5 x 83 x 42
Socket compatibility Intel: 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD: AM5 / AM4
Noise level (dB(A)) @ 50% / 75% /100% rpm: 17.2 / 29.1 / 36.8
Number of fans: 3
Lighting Connector: 3-pin 5V Adressable
Tube length (mm): 400
Refill port: Yes

Pump specifications
Pump speed (rpm): 5500
Pump adjustable (rpm): 4000 - 5500
Pump connector: 4-pin PWM

Fan specifications
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM (rpm): 2100
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.45
Input power (W): 5.4
Connector: 4-pin PWM
Lifespan (h / 25°C): 80,000

Radiator specifications
Dimensions (L x W x H), (mm): 120 x 397 x 27
Radiator material / finish: aluminum / black spray painted
Base material / finish: copper / nickel plated
