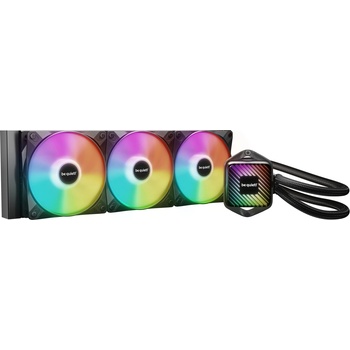

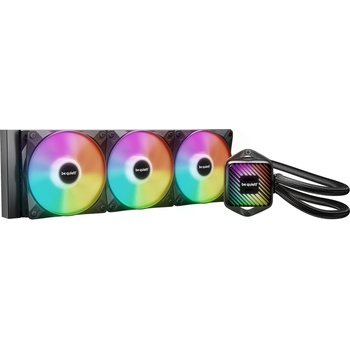

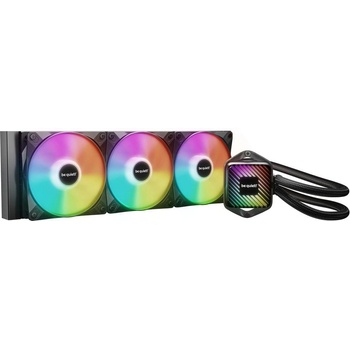

be quiet! Pure Loop 3 LX 360mm (BW031EU)

be quiet! Pure Loop 3 LX



MAKE IT YOUR PURE LOOP 3 LX!

You are S. P. E. C. I. A. L.

Switch between the 10 included lighting foils as often as you like with Pure Loop 3 LX 360mm. Each foil changes the impressive ARGB effect of the cooling block. You can replace foils with minimal effort.

LIGHT WINGS LX FANS

Performant, yet quiet operation

Pure Loop 3 LX 360mm features 3 Light Wings LX 120mm PWM high-speed fans. They come with 16 LEDs that perfectly scatter across the fan blades and are key for the stunning visuals Pure Loop 3 LX 360mm offers. The fan’s 9 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that Light Wings LX 120mm PWM high-speed provides the performance that is needed, even in demanding scenarios. A specially designed, funnel shaped air outlet is more than just the icing on the cake: it maximizes the airflow over the fins. The fans also come with a closed loop motor function. This feature always keeps a steady fan speed, no matter the resistance – ideal for radiators.

DAISY CHAIN

No need for a fan hub

If you want to connect more fans than your system has headers for, you are in for a problem. A water cooling system with pump and 3 fans on top of the case fans can hit the maximum available on a motherboard easily.
The daisy chain function of Pure Loop 3 LX 360mm allows all fans to be connected in series. We provide fewer and shorter cables to help you achieve a cleaner look.

SUPERIOR PUMP DESIGN
With state-of-the-art technology

A powerful PWM pump ensures the very high-performance of Pure Loop 3 LX 360mm and is whisper-quiet at the same time.
The 6-pole 3-phase motor provides a smooth and consequently silent operation, whether at high or low rpm.

EASY AND INTUITIVE HANDLING
We got your back

Who says water coolers are harder to maintain? We most certainly do not! Pure Loop 3 LX 360mm features flexible tubes, so installing it becomes a breeze. The refill port is easily accessible, making refilling this AiO an easy task, if and when it is required.



Tech Specs



General data

Model Pure Loop 3 LX 360mmColor option -Dimensions radiator, incl. fan (H x W x D), (mm) 397 x 120 x 52Dimensions cooling block (H x W x D), (mm) 68.5 x 93.4 x 48.7Total weight (kg) 1.280Socket compatibility Intel 1851 / 1700 / 1200 / 1151 / 1150 / 1155Socket compatibility AMD AM5 / AM4Noise level (dB(A)) at 50% / 75% /100% rpm 17.3 / 29.4 / 36.9Number of fans 3Lighting connector YesTube length (mm) 400Refill port Yes



Pump specifications

Pump speed (rpm) 5500Pump adjustable (rpm) 3000 - 5500Pump connector 4-pin PWM



Radiator specifications

Dimensions (L x W x H), (mm) 397 x 120 x 27Radiator material / finish AluminumBase material / finish copper



Fan specifications

Fan model Light Wings LX 120mm PWM high-speedFan dimensions (mm) 120 x 25 x 120Speed at 100% PWM (rpm) 2100Airflow at 100% PWM / 12V (CFM / m3/h) 61.8 / 105.1Air Pressure at 100% PWM / 12V (mm H2O) 2.51Bearing technology RifleMotor technology 4-poleRated Voltage (V) 12Input current (A) 0.17Safety current (A) 0.45Input power (W) 5.4Connector proprietaryCable length (mm) 20 / 100 + daisy chainLifespan (h / 25°C) 60,000



Safety certifications

Approvals CE, UKCA, FCC



Environmental directives

RoHS YesWEEE YesTriman Yes
