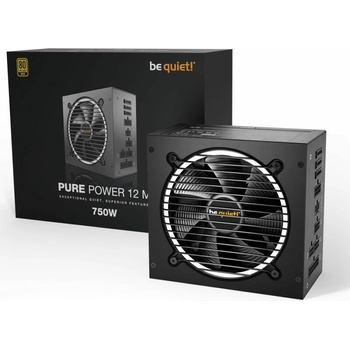

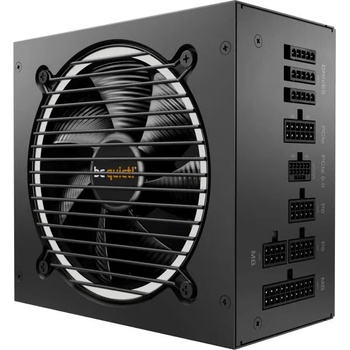

be quiet! Pure Power 12 M 750W 80 PLUS Gold (BN343)

•
  General data


Model
Pure Power 12 M 750W

Continuous power (W)
750

Peak power (W)
820

Form factor
Version 3.0

Form factor EPS 12V
Version 2.92

Topology
LLC + SR + DC/DC

Digitally controlled
-

Voltage (Vac)
100 - 240

Frequency (Hz)
50 - 60

Input current (A)
10 / 5

Power factor at 100% load
>0.98

Modern standby
✓

Power consumption in standby (W)
100,000

Operating temperature up to (°C)
40

•
  Efficiency


80 PLUS certification
Gold

Efficiency (%) at 230V, 2% load
75.7

Efficiency (%) at 230V, 10% load
86.6

Efficiency (%) at 230V, 20% load
91.5

Efficiency (%) at 230V, 50% load
92.6

Efficiency (%) at 230V, 100% load
90.6

•
  Fan and cooling technology


Fan
Silence-optimized be quiet! fan

Fan size (mm)
120

Bearing technology
Rifle

Motor technology
4-pole fan motor

Max. fan speed (rpm)
1800

dB(A) at 10% load
8.4

dB(A) at 20% load
8.5

dB(A) at 50% load
8.9

dB(A) at 100% load
24

•
  Output


Multi-rail operation (12V rails)
2

12V single rail operation
-

Overclocking key
-

+3.3V (A)
20

+5V (A)
20

+12V1 (A)
36

+12V2 (A)
32

+12V3 (A)
-

+12V4 (A)
-

+12V5 (A)
-

+12V6 (A)
-

-12V (A)
0.3

+5Vsb (A)
3

Max. combined power 12V (W)
750

Max. combined power 3.3V + 5V (W)
120

Hold-up time at 100% load (ms)
21.4

Power good signal (ms)
100 - 150

•

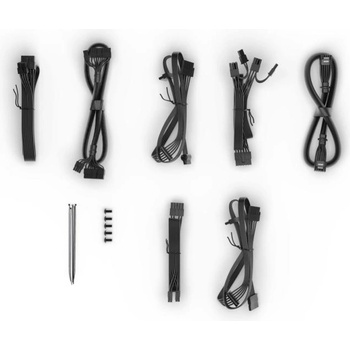

  Cables and connectors


Modular cables
✓

Sleeved cables
20+4 pin

Flat cables
P4+4, P8, PCIe, drives

Maximum cable length (cm)
95

Cable length to motherboard (cm)
55

No. of cables
7

ATX-Motherboard (20+4-pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

P4 (CPU)
-

12VHPWR cable / W
1 / 600

PCI-e 6+2-pin (GPU)
2

PCI-e 6-pin (GPU)
-

SATA
5

PATA
2

FDD (Floppy)
-

•
  Protection


OTP (over temperature protection)
✓

OCP (over current protection)
✓

OPP (over power protection)
✓

SCP (short circuit protection)
✓

OVP (over Voltage protection)
✓

UVP (under Voltage protection)
✓

SIP (Surge & Inrush Protection)
✓

•
  Safety certification


BSMI
✓

CB
✓

CCC
✓

CE
✓

cRUus
-

cTUVus
✓

CU
✓

FCC
✓

RCM
✓

TÜV
✓

UKCA
✓

•
  Casing


Dimensions without cable (L x W x D), (mm)
160 x 150 x 86

Weight (kg)
1.69

Color
Black
