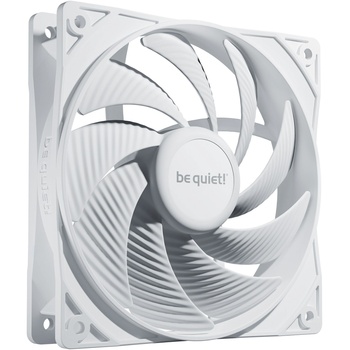

be quiet! Pure Wings 3 PWM high-speed White (BL111)

be quiet! PURE WINGS 3

120mm PWM high-speed White





Performant, Progressive, Quiet

Pure Wings 3 120mm PWM high-speed White are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.

• Innovative closed loop motor keeps the rpm no matter the air resistance
• Optimized fan frame for outstanding performance on radiators
• Newly designed fan blades and re-arranged angle for extraordinary air pressure
• Pure Wings 3 White can be operated with very low minimum rpm for very quiet operation
• Long life rifle bearing gives an operating lifetime of 80,000 hours





INNOVATIVE TECHNOLOGY

Closed loop motor for persistent rpm

Pure Wings 3 120mm PWM high-speed White features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 120mm PWM high-speed White always operates at the desired speed, no matter the air resistance.













OPTIMIZED TO THE MAX

For unprecedented air pressure in its class

The fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM high-speed White. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM high-speed White.











Tech specs:

Dimensions (mm) 120Color option WhiteLighting -Fan speed at 100% PWM / 12V (rpm) 2100Noise level at 100% PWM / 12V (dB(A)) 30.9Airflow at 100% PWM / 12V (CFM / m3/h) 59.6 / 101.2Air Pressure at 100% PWM / 12V (mm H2O) 2.41Mechanical specificationsDimension s (L x W x H), (mm) 120 x 120 x 25Weight incl. fixed cables (g) 149Bearing technology RifleMotor technology 4-pole fan motorPush pin fixing -Screw fixing ✓Cables / ConnectorsDaisy-chain compatible -Lighting connector -Connector 4-pin PWMCable length (mm) 460Cable sleeve -Performance / NoiseAirflow at 100% PWM / 12V (CFM / m3/h) 59.6 / 101.2Air Pressure at 100% PWM / 12V (mm H2O) 2.41Noise level at 100% PWM / 12V (dB(A)) 30.9Lifespan (h / 25°C) 80,000Zero RPM mode -Electrical specificationsRated Voltage DC (V) 12Operating Voltage DC (V) 5 - 13.2Current consumption (A) 0.13Safety current (A) 0.30Input power (W) 3.6Rated Current LED (A) -
