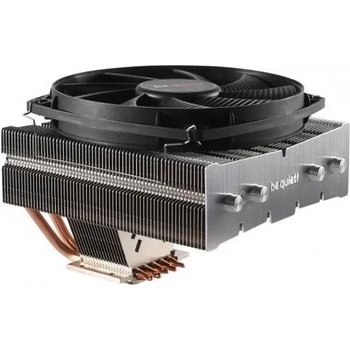

be quiet! Shadow Rock TF2 (BK003)

Be Quiet
Shadow Rock TF2

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

- Space-saving top-flow construction
- Very high cooling capacity of 160W TDP
- Direct connection of baseplate to cooling fins for fast heat transfer
- Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
- Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
- Five high-performance 6mm heat pipes
- Compatibility with Intel and AMDTM sockets

HIGH-PERFORMANCE HEATPIPES
Offering the system an impressive cooling performance

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.

DIRECT CONNECTION OF BASE PLATE AND FINS
For highly effective cooling power

An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)

Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.

SMALL, DIAGONALLY ARRANGED FINS
Produce the perfect airflow

The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel or AMD socket.

SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept

The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.

SPECIFICATIONS:

Model- Shadow Rock TF 2

Overall dimensions without mounting material (L x W x H), (mm)- 137 x 165 x 112

Total weight (kg)- 0.68

TDP (W)- 160

Socket compatibility- Intel: LGA 775 / 115x / 1366 / 2011(-3) Square ILM / 2066

AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)

Backplate mounting

Fan model, number- 1x silence-optimized be quiet! fan

Overall noise level (dB(A)) @ 50/75/100% (rpm)- 11.9 / 19.3 / 24.4
