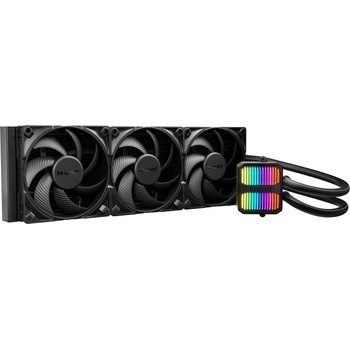

be quiet! Silent Loop 3 420mm (BW026)

be quiet! Silent Loop 3



WHAT A COOL(ING) BLOCK

Obsession with details

The cooling block of Silent Loop 3 420mm is undisputed. The explanation may look complicated, but we owe it to our most loyal fans and all the enthusiasts out there: The cooling block boasts a 1,800 mm2 fin area, which is an increase of up to 2x compared to many other AiO's in this class. This greatly improves heat transfer and makes sure to cover all hot spots on the CPU. The large fin area could only be achieved by a specially developed screwless design for attaching the heat plate. The internal design of the flow path takes care that all areas are flowed to evenly to achieve high performance regardless of the CPU platform.

SUPERIOR PUMP DESIGN

Enjoy the silence

A powerful PWM pump with 3-chamber design ensures the very high-performance of Silent Loop 3 420mm and is whisper-quiet at the same time. The second of its 3 chambers acts as a reservoir and offers enough space for the coolant to spread out and thus reduces turbulences before the liquid leaves the pump unit. In combination with the 6-pole 3-phase motor this results in a smooth and consequently silent operation.

SILENT WINGS 4 FANS

Virtually inaudible operation - period

Silent Loop 3 420mm features 3 Silent Wings 4 140mm PWM high-speed fans. These fans feature silence-optimized fan blades and a funnel shaped air outlet, making Silent Wings 4 140mm PWM high-speed a fan that makes no compromises between very quiet operation and highest performance. The corners of the frame are designed to minimize air leakage on radiators.

EASY TO REFILL

Simplified refilling process for a long lifespan

An easy-to-access refill port makes for convenient handling, safe refilling and comfortable maintenance. The coolant bottle included extends the lifespan.

S-TIER DESIGN

The perfect mix between power and elegance

The cooling block’s design is iconic and unmistakable. We kept it all-black and elegant to represent the sheer cooling power Silent Loop 3 420mm offers, despite being barely audible. Optionally, you can turn on ARGB LEDs. Silent Loop 3 420mm is a statement in your PC case: you strive for the maximum in any discipline.



Specifications



General data

Dimensions radiator, incl. fan (H x W x D), (mm) 457 x 140 x 52Dimensions cooling block (H x W x D), (mm) 93.5 x 80 x 56Total weight (kg) 2.01Socket compatibility Intel 1851 / 1700 / 1200 / 1150 / 1151 / 1155Socket compatibility AMD AM5 / AM4 / TR5 / TR4Noise level (dB(A)) at 50% / 75% /100% rpm 19.4 / 29.3 / 34.3Number of fans 3Lighting connector 3 Pin 5V AdressableTube length (mm) 400Refill port Yes



Pump specifications

Pump speed (rpm) 3500Pump adjustable (rpm) 1700 - 3500Pump connector 4-pin PWM



Radiator specifications

Dimensions (L x W x H), (mm) 457 x 140 x 27Radiator material / finish aluminum / black spray paintedBase material / finish copper / nickel plating



Fan specifications

Fan model Silent Wings 4 140mm PWMFan dimensions (mm) 140 x 140 x 25Speed at 100% PWM (rpm) 1900Airflow at 100% PWM / 12V (CFM / m3/h) 78.4 / 133.2Air Pressure at 100% PWM / 12V (mm H2O) 2.36Bearing technology FDBMotor technology 6-pole fan motorRated Voltage (V) 12Input current (A) 0.30Safety current (A) 0.40Input power (W) 3.6Connector 4-pin PWMCable length (mm) 500Lifespan (h / 25°C) 300,000



Safety certifications

Approvals CE, FCC, UKCA



Environmental directives

RoHS YesWEEE YesTriman Yes
