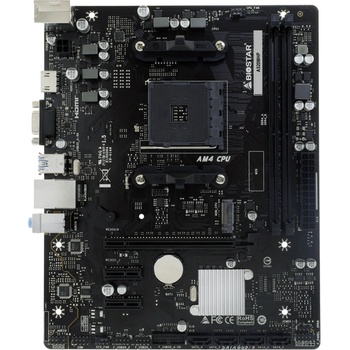

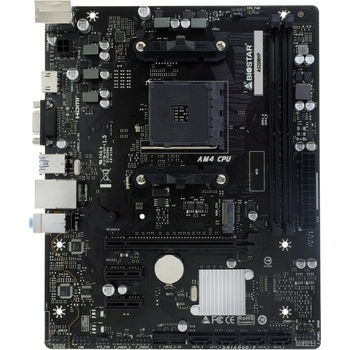

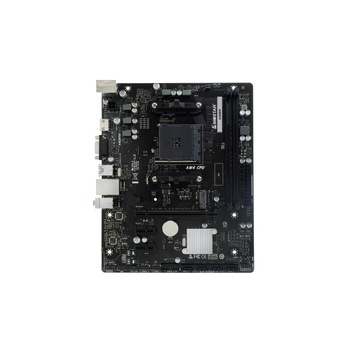

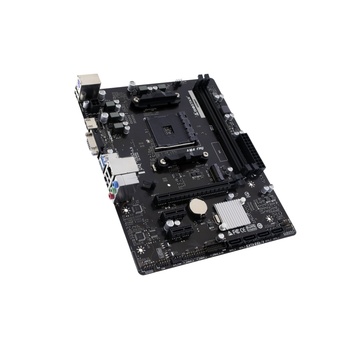

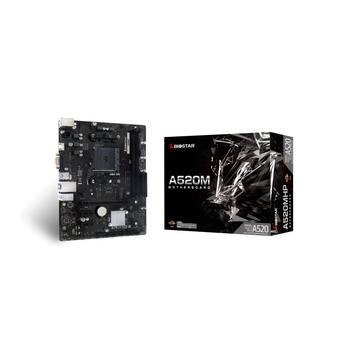

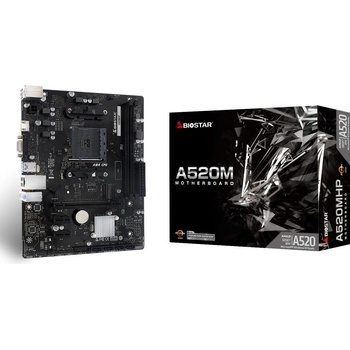

BIOSTAR A520MHP

Biostar A520MHP



• Support AMD RyzenTM 5000/5000G/4000G/3000/3000G series Processors
• AMD A520 single chip architecture
• Supports 2-DIMM DDR4 up to 64 GB Memory
• Supports USB 3.2 Gen1
• Supports PCIe M. 2
• Supports HDMI® 4K resolution







A520MHPChipset AMD A520CPU SUPPORT Support AMD Ryzen 5000/5000G/4000G/3000/3000G series Processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www. biostar. com. tw for CPU support list.
 MEMORY 4th Gen AMD Ryzen Processors (Vermeer CPUs):
Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* Please refer to www. biostar. com. tw for Memory support list.
 INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
 STORAGE Total supports 1 x M. 2 socket and 4 x SATA III (6Gb/s) ports
AMD Ryzen 5000/5000G/4000G/3000/3000G Processors
1 x M. 2 (M Key) Socket:
Supports M. 2 Type 2260/ 2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6.0Gb/s) SSD
AMD A520 Chipset
4 x SATA III Connector (6Gb/s):
Supports AHCI & RAID 0, 1, 10
* Specifications vary by CPU typesLAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
 AUDIO CODEC Realtek ALC897
7.1 Channels, High Definition Audio, Hi-Fi (Front)
 USB 4 x USB 3.2 (Gen1) port
(2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 port
(4 on rear I/Os and 4 via internal headers)
 EXPANSION SLOT AMD Ryzen 5000/3000 Processors
1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
AMD Ryzen 5000G/4000G/3000G Processors
1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 Slot
* According to different CPUs will have different speeds.
* Specifications vary by CPU typesREAR I/O 1 x PS/2 Keyboard/ Mouse
1 x VGA Port
1 x HDMI® Port
1 x LAN port
2 x USB 3.2 (Gen1) Port
4 x USB 2.0 Port
3 x Audio Jack
 INTERNAL I/O 4 x SATA III 6.0Gb/s Connector
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
2 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Serial Header
1 x Speaker Header
 DIMENSION Micro ATX Form Factor Dimension: 19.0 cm x 23.5 cm ( W x L )
 OS SUPPORT Supports Windows 10 (64bit)/ 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
