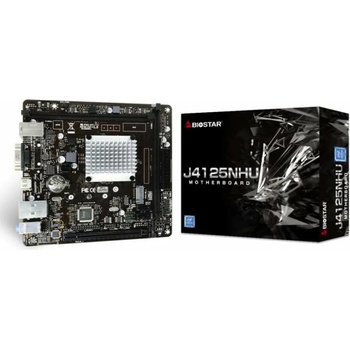

BIOSTAR J4125NHU

Biostar J4125NHU

CPU onboard

• Supports Intel J4125
• Supports 2-DIMM DDR4-1866 /2133 /2400 up to 8GB maximum capacity
• Supports PCIe 2.0
• Supports PCIe M. 2
• Supports USB 3.2 Gen1
• Support HDMI 4K resolution
• Supports GbE LAN





Specifications:

J4125NHUChipset Intel J4125CPU SUPPORT J4125NHU: Intel Celeron J4125 processor
 MEMORY Supports Dual Channel DDR4-1866/ 2133/ 2400
2 x DDR4 DIMM Memory Slot, Max. Supports up to 8 GB Memory
Each DIMM supports non-ECC 4GB DDR4 module
* Please refer to www. biostar. com. tw for Memory support list.
 INTEGRATED VIDEO By CPU model
Supports DX12
 STORAGE 2 x SATA III (6Gb/s) : Supports AHCI
1 x M. 2 (M Key) : Supports PCI-E 2.0 x2 (10Gb/s) & SATA III (6Gb/s) SSD
Note : When using SATA SSD module on M. 2 slot, the SATA_2 connector will be disabled.
* Specifications vary by CPU typesLAN RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
 AUDIO CODEC ALC887 / ALC897
7.1 Channels, High Definition Audio
 USB 2 x USB 3.1(Gen1) port (2 on rear I/Os)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
 EXPANSION SLOT 1 x PCIe 2.0 x16 Slot (x1 mode)
1 x Key E - M. 2 Slot (Optional)
* Specifications vary by CPU typesREAR I/O 1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x VGA Port
2 x USB 3.1(Gen1) Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

 INTERNAL I/O 2 x SATA III - 6Gb/s Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
2 x COM Port Headers
1 x Printer Port Header
1 x Clear CMOS Header
1 x TPM Header (Optional)
 H/W MONITORING CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring
 DIMENSION Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
 OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
 BUNDLE SOFTWARE BullGuard
