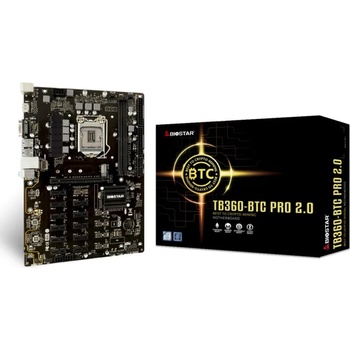

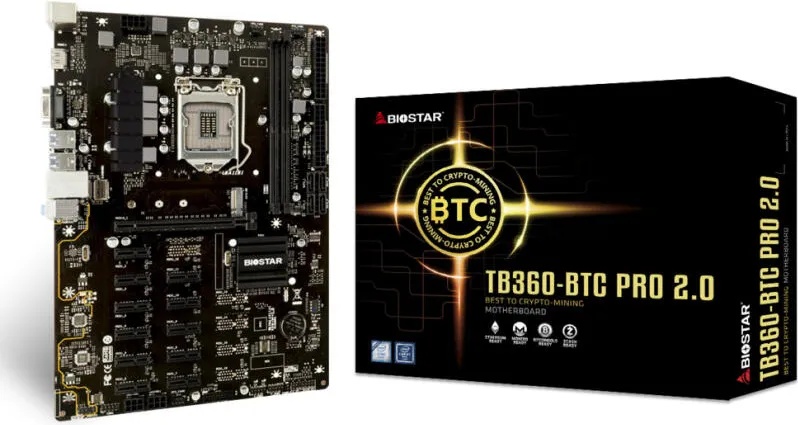

BIOSTAR TB360-BTC PRO 2.0

Biostar TB360-BTC PRO 2.0



• Supports 9th & 8th Generation Intel Core Processor
• Intel B360 single chip architecture
• Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity
• Support 12 x PCIe 3.0 slots
• Support M. 2 (6Gb/s) Connector
• Support HDMI Connector



TB360-BTC PRO 2.0Chipset Intel B360CPU SUPPORT 9th Gen Intel Core i9 LGA 1151 Processor
Socket 1151 for 9th & 8th Intel Core i7 / i5 / i3 / Pentium / Celeron processor
* 8th Generation Intel Core Processor Family only support 300-Series.
* Please refer to www. biostar. com. tw for CPU support list.
 MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 moduleINTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
 STORAGE 4 x SATA III Connectors (6Gb/s)
1 x M. 2 (M Key) Socket:
Supports M. 2 Type 2242/ 2260/ 2280 SSD module
Supports SATA III (6Gb/s) SSD
* Specifications vary by CPU typesLAN Realtek LAN Chip
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
 AUDIO CODEC ALC887
7.1 Channels, High Definition Audio
 USB 6 x USB 3.1(Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
 EXPANSION SLOT 11 x PCIe 3.0 x1 Slot
1 x PCIe 3.0 x16 Slot
* Maximum VGA cards mining support are depending on VGA Driver or mining software.
* Specifications vary by CPU typesREAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 2.0 Ports
4 x USB 3.1(Gen1) Ports
3 x Audio Jack
 INTERNAL I/O 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports)
1 x 8-Pin Power Connector
2 x 24-Pin Power Connectors
2 x 6-Pin PCIe Power Connectors
1 x CPU Fan Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x COM Serial Header
1 x Clear CMOS Header
 H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
 DIMENSION ATX Form Factor Dimension: 29.5cm x 21.0cm ( W x L )
 OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
 BUNDLE SOFTWARE BullGuard
 FEATURES PCI-E Slot Detection BIOS Boot Screen
