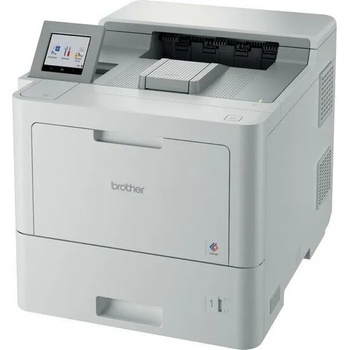

Brother HLL9470CDN

Brother HL-L9470CDN

General

Printer type
Colour

Function
Print

Display
Colour touchscreen
Display size
8.76cm

Laser classification
Class 1 Laser Product

Max paper size
A4

Memory
1GB Internal and 8GB External Storage device

Connectivity
Connectivity
Wired Network

Local interface
Hi-Speed USB 2.0 & USB Host (Front | Rear)
NFC
Integrated NFC Reader Supported for printing. NFC standards include: (ISO14443 Type A) MIFARE Standard/Plus/ Ultralight/Ultralight C/DESfire my-d move, Tag-it (ISO15693 Type B)

Wired network interface
GigE (10Base-T/100Base-TX/1000Base-T)

Wireless network interface
Optional accessory

Mobile connectivity
Supported
AirPrint, Mopria, Brother Print Service Plugin, Brother Apps, Web Connect

Dimensions & weights
With carton
557 x 628.2 x 633.5mm

With carton
34.7 kg

Without carton
442 x 541 x 403mm

Weight
22.8 kg

Environment

Operating humidity
20-80%

Operating temperature
10-32 Celsius

Storage humidity
10-90%

Storage temperature
0-40 Celsius

Sound power
Printing 6.88BA, Ready 3.02BA, Quiet Mode 6.68BA, Deep Sleep 3.02BA

Sound pressure
Printing 56.5dbA, Ready 17.2dbA, Quiet Mode 53dbA

Environmental
Blue Angel environmental accreditation
Yes
Nordic Swan environmental accreditation
Yes
Power consumption (Watts)
Printing - 770W (420W in quiet mode), Ready 85W, Sleep 15.6W, Deep Sleep 1.0W, Power Off 0.04W
Typical electrical consumption
0.662kWh/Week

Media specifications
Types and sizes
Media Types including, Thin Paper, Plain Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond Paper, Label, Envelopes, Glossy Paper. Media sizes up to Width: 76.2mm - 215.9mm Length: 127mm - 355.6mm
Weights
Standard (Tray 1) and Multi Purpose Tray 60 - 230gsm, Optional (Trays 2-5) 64 - 105gsm

Operating systems & software
Software supplied - Mac
Brother iPrint&Scan, Utilities, Easy Setup
Software supplied - Windows
Brother iPrint&Scan, Utilities, Easy Setup, PaperPort SE 14, BRAdmin Professional, Mass Deployment Tool, Status Monitor

Paper handling
Paper input
Standard Tray1 - Up to 520 sheets, Multi Purpose Tray - Up to 100 sheets, 15 Envelopes
Paper output
250 sheets face down, 1 sheet face up (straight path)

Printing
Resolution
2,400 dpi class (2400 x 600), 600 x 600 dpi quality
A4 2-sided colour print speed
40 pages per minute
A4 standard colour print speed
40 pages per minute
Automatic 2 sided print
Yes
Emulations
PCL5e, PCL5c, PCL6（PCL XL Class3.0, BR-Script3, PDF Version 1.7, XPS Version 1.0
First print out time
Less than 10 seconds
Recommended monthly volume
15,000 pages

Security features
802.1x
Yes
Active Directory LDAP Authentication
Yes
Automatic Intrusion Detection
Yes
Digitally-signed Firmware
Yes
IP filter
Yes
NFC
Yes
Port based Network Access Control
Yes
Restrict network protocols
Yes
Secure function lock v3
Yes
Secure print
Yes
Secure printing with SSL
Yes
Setting lock
Yes
Store Print Log
Yes
SysLog
Yes

Solutions
Barcode Print+
Yes
Secure Print+
Yes
Brother Solutions Interface
Yes
Cloud Secure Print
Yes
