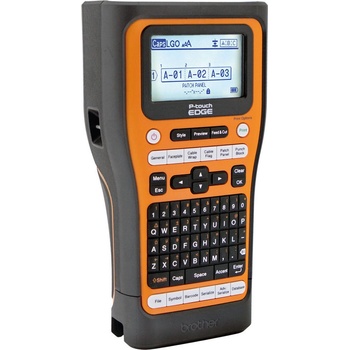

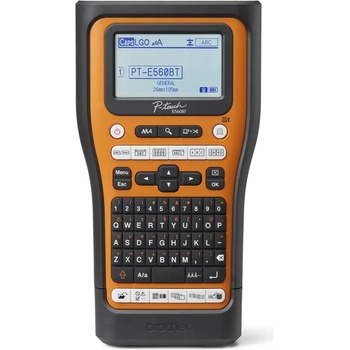

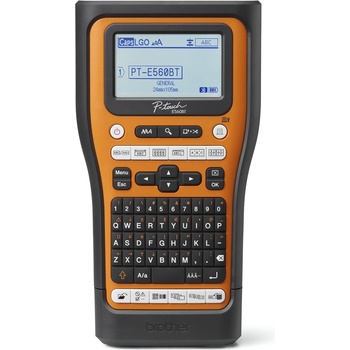

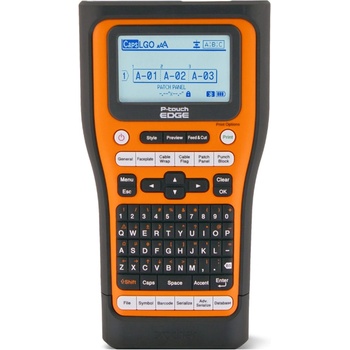

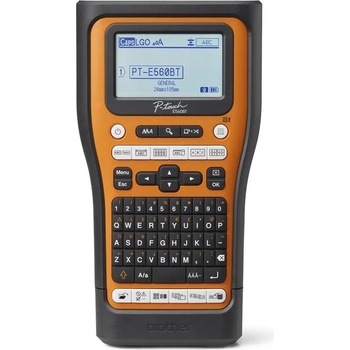

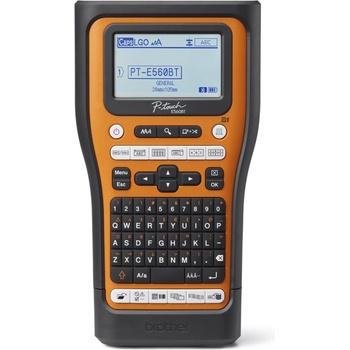

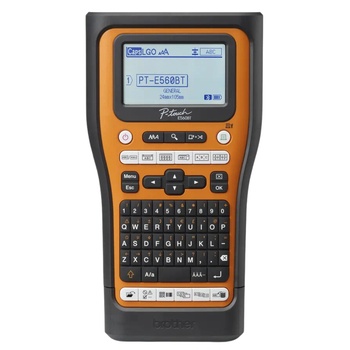

Brother PTE-560BTVP (PTE560BTVPQL1)

Brother P-TOUCH EDGE 560BTVP

Designed to support contractors in large project applications, the P-Touch EDGE 560BT is loaded with features to streamline labeling for techs. Format laminated labels and heat shrink tubes up to 24mm for your applications in fewer steps using the included ruler and quick application keys. Store your databases and templates, intuitively serialize and create QR codes and linear barcodes straight on the printer itself to cut out wasted time from repetitive tasks.

Rather work on your phone or computer? Get the job done from your mobile device thanks to Bluetooth wireless connectivity and the Pro Label tool app. Or, connect and charge from your PC with a common USB-C® cable and print from the P-Touch Editor software. Then, watch the auto-cutter print a strip of labels with half-cuts to make peeling and applying labels a cinch. Add in a secure hand strap to help prevent drops and a long-lasting battery and the PT-E560BT is the go-to tool for crushing tasks with the precision and efficiency of a seasoned pro.



Specifications:

Dimensions 5.2in x 9.6in x 3.15in (132mm x 244mm x 80mm)Weight Without tape and battery: 2.43lbs. (1.1kg)Memory Standalone: Up to 99 label designs (1,800 characters / file)
Download: Up to 99 templates, databases & images (6MB)Control panel 70 rubber keys (QWERTY)
17 characters x 2 rows LCD and backlightOperating temperature / humidity 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensingStorage temperature / humidity -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensingPower Optional USB-C PD AC adapter (5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A, 20VDC, 1.5A)Battery Rechargeable Li-ion batteryBattery yield 5 tapes on one chargeBattery charging options USB-C PD AC adapter or any USB-C power sourceBattery charging time 3 hoursEnergy conservation certifications ENERGY STAR®Print technology Laminating thermal transferResolution 180dpiMax print speed Up to 1.2ips via AC adapter, up to 0.78ips via batteryMax print width 0.71in (18mm)Max print length 39.37in (1m)Communications interfaces USB-C 3.0 (Windows®) / 2.0 (Mac®), Bluetooth® 5.0 (SPP) MFi (iAP)SDK support Android, iOS®Support software Windows® Printer Driver, P-touch Editor v6. x for Windows®, P-touch Editor v5. x for Windows® (with Cable Labeling Wizard), Transfer Manager v2. x for Windows®, Printer Setting Tool for Windows®, Transfer Express for Windows®, Update Software for Windows®, Driver Deployment Wizard for Windows®, Firmware Update Tool for Windows® & Mac®Apps Pro Label Tool for Android & iOS®, iLink&Label for Android & iOS®, iPrint&Label for Android & iOS®, Mobile Transfer Express for Android & iOS®, Print SDK Demo for AndroidPrinter languages Raster, ESC P, P-touch Template (download), Mobile SDKLinear barcodes Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)2D barcodes QR Code, Data MatrixFonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter GothicFunction keys General, faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, barcode, serialize, advanced serialization, database, heat shrink tube (auto activation), self-laminate tape (auto activation)Keyboard QWERTY, mini size rubber (70 keys)Print capabilities Up to 25 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, heat shrink tube, self-laminating), 476 symbols, text insert, multi-block up to 99, 20 languages, up to 99 downloadable templates / databases / graphic images (6MB)Print layout Real Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, invert & vertical printing, repeat printing up to 99 copies
