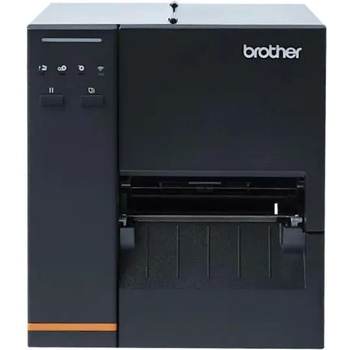

Brother TJ-4005DN (TJ4005DNZ1)

BROTHER TJ-4005DN Label printer direct thermal Roll 12cm 203dpi 152mm/sec USB 2.0 LAN serial USB 2.0 host





Manufacturer
BROTHER

Manufacturer Part No
TJ4005DNZ1



Marketing Description

The Brother TJ-4005DN industrial label printer offers performance you can rely on when keeping up with increasing demand. The high-volume direct thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large roll capacity and in-built durability. With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4005DN has been built with you in mind.

Product Features

Versatile barcode compatibilityThe Brother TJ-4005DN is designed to meet the diverse needs of modern businesses, supporting a wide array of barcodes including Aztec code, QR code, and UPC variants. This extensive compatibility ensures seamless integration into existing systems, enhancing operational efficiency.
High-quality printingEquipped with direct thermal printing technology and a maximum resolution of 203 DPI, the TJ-4005DN delivers clear, crisp monochrome outputs. Whether printing labels, tags, or receipts, expect high-quality results that are easy to read.
Efficient connectivity optionsWith options for LAN and serial interfaces, the TJ-4005DN offers flexible connectivity solutions. This ensures the printer can easily integrate into various IT environments, providing reliable and efficient printing operations.
Robust media handlingCapable of handling rolls up to 12 cm in width and a maximum printing length of 25,400 mm, the TJ-4005DN is versatile in managing different media sizes and types, including continuous labels. This adaptability makes it suitable for a wide range of applications.
Advanced memory capacityWith 128 MB of installed RAM and flash memory, the TJ-4005DN boasts ample storage for complex print jobs. This advanced memory capacity allows for faster processing and efficient handling of large printing tasks without compromising performance.

General

Printer Type
Label printer - direct thermal - monochrome

Printer

Print Speed
Up to 152 mm/sec

Connectivity Technology
Wired

Interface
USB 2.0, LAN, serial, USB 2.0 host

Max Resolution (B&W)
203 dpi

Language Simulation
ZPL II, EPL2, DPL, FBPL-EZD

Features
Label detection sensor

Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, TLC39, China Post, Codablock F, Plessey, EAN-14, Code 128B, Code 128C, Code 128A, ITF-14, Standard 2 of 5, EAN-128, EAN-8, EAN-13, MSI, UPC-2, UPC-5, Deutsche Post Identcode, Deutsche Post Leitcode, GS1 DataMatrix

RAM

RAM Installed (Max)
128 MB

Flash Memory

Flash Memory
128 MB

Media Handling

Media Type
Continuous labels

Max Media Size
Roll (12 cm)

Min Media Size (Custom)
20 mm x 5 mm

Max Media Size (Custom)
120 mm

Media Sizes
Roll (12 cm)

Max Printing Width
107 mm

Max Printing Length
25400 mm

Roll Maximum Outer Diameter
203 mm

Roll Core Diameter
25.4 mm, 76.2 mm

Networking

Networking
Print server

Expansion / Connectivity

Connections
1 x RS-232C1 x USB 2.01 x LAN1 x USB 2.0 host

Miscellaneous

Cables Included
1 x USB cable

Software / System Requirements

Software Included
Software Development Kit (SDK), Bartender UltraLite Edition

OS Required
Linux, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Android 5.0 or later, Microsoft Windows Server 2016, Apple iOS 9 or later, Microsoft Windows Server 2019, Apple macOS 10.12. x or later, Apple macOS 10.15. x, Apple MacOS X 10.11. x or later, Apple macOS 10.14. x or later, Apple macOS 10.13. x or later

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
40 °C

Humidity Range Operating
25 - 85% (non-condensing)

Dimensions & Weight

Width
24.8 cm

Depth
43.6 cm

Height
27.4 cm

Weight
9.2 kg

Technical data provided by third party. We assume no liability for errors within these data.
