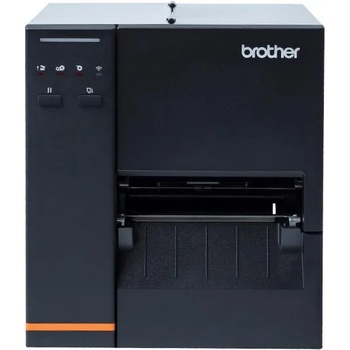

Brother TJ-4120TN

BROTHER TJ-4120TN Label printer direct thermal 12cm 300dpi 178mm/sec USB 2.0 LAN serial USB host





Manufacturer
BROTHER

Manufacturer Part No
TJ4120TNZ1



Marketing Description

Print labels with ease, even in the toughest production environments, with the Brother TJ-4120TN industrial label printer. The high-volume thermal label printer delivers efficient labeling solutions with performance you can rely on. With ZPL2 emulation compatibility, high ribbon capacity and multiple connectivity options, this durable industrial printer is built for you, and built to last.

Product Features

Connectivity as standardUSB, USB Host, Serial and Ethernet are included as standard for the industrial printers.
In-built durabilityThe TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.
High-quality thermal printingThe TJ-4120TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time. With high-quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
Integrate with easeWith the Brother TJ series, there is no need to worry about integration. The industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.

General

Printer Type
Label printer - direct thermal / thermal transfer - monochrome

Printer

Print Speed
Up to 178 mm/sec - max speed

Connectivity Technology
Wired

Interface
USB 2.0, LAN, serial, USB host

Max Resolution (B&W)
300 dpi

Language Simulation
ZPL II, EPL2, DPL

Features
Label detection sensor

Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, MicroPDF417, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, TLC39, China Post, Plessey, EAN-14, ITF-14, EAN-128, EAN-8, EAN-13, MSI

RAM

RAM Installed (Max)
128 MB

Flash Memory

Flash Memory
128 MB

Media Handling

Media Type
Continuous labels

Max Media Size
Roll (12 cm)

Min Media Size (Custom)
20 mm

Max Media Size (Custom)
120 mm

Media Sizes
Roll (4cm), Roll (11 cm), Roll (12 cm), Roll (2 cm)

Max Printing Width
105.7 mm

Max Printing Length
11430 mm

Roll Maximum Outer Diameter
203 mm

Roll Core Diameter
25.4 mm, 76.2 mm

Networking

Networking
Print server

Expansion / Connectivity

Connections
1 x RS-232 - 9 pin D-Sub (DB-9)1 x USB 2.01 x LAN - RJ-451 x USB host

Miscellaneous

Included Accessories
1" ribbon paper core

Cables Included
1 x USB cable

Features
4 LED indicators

Software / System Requirements

Software Included
Software Development Kit (SDK)

OS Required
Linux, Windows 8, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, SuSE Linux Enterprise Server 12, Android 5.0 or later, Microsoft Windows Server 2016, CentOS 7.2, Apple iOS 9 or later, Red Hat Enterprise Linux 7.3, Apple macOS 10.12. x, Linux Fedora 24, Apple macOS 10.13. x, Microsoft Windows Server 2019, Apple macOS 10.14. x, Ubuntu 11.04 - 16.04, Apple macOS 10.15. x

Manufacturer Warranty

Service & Support
Limited warranty - 3 years - pick-up and return

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
40 °C

Humidity Range Operating
25 - 85% (non-condensing)

Dimensions & Weight

Width
24.8 cm

Depth
43.6 cm

Height
27.4 cm

Weight
9.2 kg

Technical data provided by third party. We assume no liability for errors within these data.
