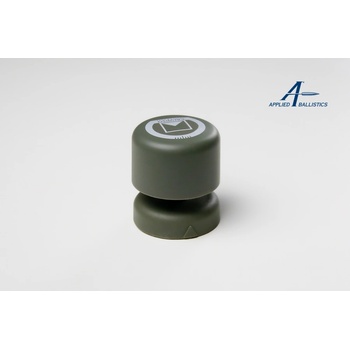

Calypso Ultrasonic Portable Mini AB

A miniature, Bluetooth, Battery powered, ultrasonic anemometer and wind vane.

Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable Mini AB is a wind meter that measures both speed and direction, allowing data logging via a free app.

With just 43 mm diameter the Ultrasonic Portable MINI AB is a fully handheld, complete wind instrument.

It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.

Applied Ballistics Compatible

It's Applied Ballistics compatible, ensuring that you can connect it to any of your Applied Ballistics Devices. This will allow all of the Applied Ballistics users to connect this wind meter to their device and get accurate wind speed and direction.

2 years warranty

Simple mount

The Ultrasonic portable MINI AB has a female thread (1/4") perfect to be mounted on any tripod.

For those who want to see/read data while using Anemotracker App, the Phone Mount is the solution. A tiny accessory to put in the headphones hole there is in any Android phone.

Wireless and Battery Powered

Wireless Charging QI- thanks to its Bluetooth connection, the Ultrasonic Portable Mini AB can be recharged on a wireless charged pad connected via USB to the power.

Special mention at the Dame Design Awards 2021

The Dame Design Awards recognize the best designed products at the Metstrade Show. Its unique relevance in the global marine marketplace emphasizes innovation and environmental impact among others.

Certifications< /p>

Get Anemotracker app for free!

Despite the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your Ultrasonic Portable Mini AB. You can also save your wind meter data when tracking.

It includes 4 different modes : Marine, Golf, Meteo and Ballistics.

It will provide you with :

Apparent wind speed and direction.

Real wind speed and direction (if used on a vehicle or boat).

Tracking of your wind data and exportation via excel or Google Earth.

Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to the latest firmware version from Anemotracker app.

Wind direction adjustable damping.

Velocity Made Good calculations.

New derived data: stylish graphs with Means and deviations.

Configuration from the units of measure: m/s, km/h, Kt.

Threshold alarm, direction offset, map mode, etc...

SPECIFI CATION

Material
Injected molded (green)

Dimensions
Diameter : 43 mm (1.69 in. )
Height : 47 mm (1.85 in. )
Weight : 78 grams (2.75 oz. )
Wind Speed
Range: 0.5 - 45 m/s (1.12 - 100 mph)
Accuracy : ±0.3 m/s at 10 m/s ( 0.67 mph at 22.40 mph)

Wind Direction
Range : 0-359º
Accuracy : ± 1
Wind Information
Aparent and real wind speed & direction via App

Sensors
Ultrasonic transducers ( 4x)

Sample rate
1 Hz

Power
Battery powered (Wireless charging QI)

Battery runtime
150 hours of active use

Data Output
Bluetooth 5.1

Bluetooth Range
up to 30 m ( 98 ft. )

Firmware
Upgradable via Bluetooth

IP Code
IPX8 protection grade

Mount
Tripod mount - female thread screw

Compatibility
Android & IOS devices, tablets, Garmin watches

Data Output
Bluetooth
