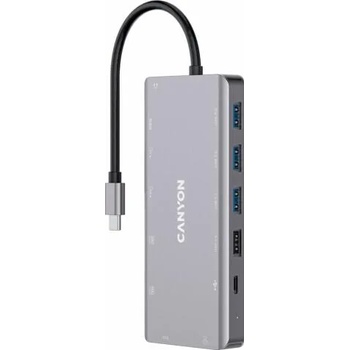

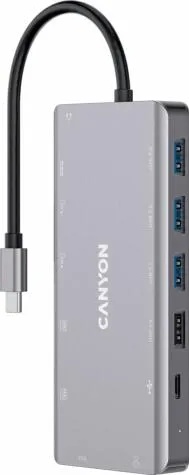

CANYON CNS-TDS12

13 Port USB-C Hub

DS-12

The model DS-12 represents maximum functionality and flexibility in use. You can connect two monitors via HDMI ports or transmit a video signal via a VGA connector. Headphones and speakers are plugged in through a 3.5 mm mini-jack. Three USB-A 3.0 ports and one USB-A 2.0 port are provided to use all the necessary computer peripherals. Two conveniently located SD and Micro SD card reader slots allow you to transfer large amounts of data instantly. The up to 100W USB-C PD charging port automatically detects an optimal charging speed for a connected device. If necessary, you can connect to the web directly via Gigabit Ethernet. In addition to all of the above, the hub is compatible with Samsung DEX and Nintendo Switch. All this functionality is enclosed in a durable aluminum housing that suppresses interference in signal transmission. The device is Plug and Play, so you don’t need additional software to start using the hub. Increase the functionality of your device by connecting everything you need!

• 13 ports


• USB-C PD charging, 100W


• Gigabit Ethernet


• 2 x 4K Ultra HD ports


• Connects 2 monitors simultaneously


• 3 х USB-A 3.0


• 1 х USB-A 2.0


• Audio 3.5 mm


• USB-C data transfer


• VGA data transmission


• SD, Micro SD card readers


• Aluminum housing


• Supports Samsung DEX and Nintendo Switch


• Compatible with computers, tablets and smartphones


• Plug and Play



Article

CNS-TDS12
Dark Gray

TECHNICAL SPECIFICATIONS

Interface
USB-C

Ports
VGA, USB, Gigabit Ethernet, Audio-In, HDMI

Card readers
SD, Micro SD

Housing material
Aluminum

Ethernet output
1000 Mbps

Charging port
USB-C PD, max. 100 W

Cable length
0.18 m

Connection method
Plug and Play, Hot Swap mode

Compatibility
Computer, tablet, smartphone

Support
Samsung DEX and Nintendo Switch

INTERFACES

HDMI
х2 HDMI (Type A), 4K*30 Hz / 1080P*60 Hz

LAN
х1 RJ-45

USB
х2 USB Type-C, transfer rate max. 480 Mbps

USB 3.0
x2 USB 3.0 (Type A), transfer rate max. 5 Gbps

USB 2.0
х1 USB 2.0 (Type A), transfer rate max. 480 Mbps

Audio interface
х1 3.5-mm minijack

Gigabit Ethernet
Network support 10/100/1000 Mbps

VGA
х1 15-pin D-sub, 1080P*60 Hz

SD
x1 Max. data transfer rate up to 480 Mbps

Micro SD
x1 Max. data transfer rate up to 480 Mbps

DIMENSIONS & WEIGHT

Width
15 mm

Height
57.5 mm

Depth
130 mm

Rated weight
88.5 g

Compatibility

Device Compatibility
Please ensure that your device is equipped with a Full Feature USB type-C port that supports all functions: video, audio, data transferring, PD charging. Otherwise, some functions may not work.

Connecting up to 3 external displays to devices based on Apple M1
1 external display - mirroring and extended desktop modes

2 and 3 external displays - only mirroring mode between external screens
