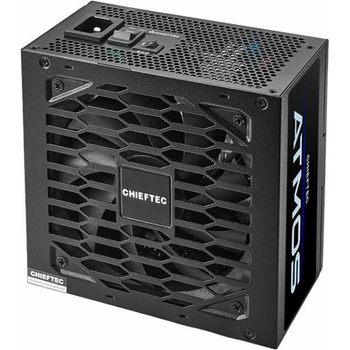

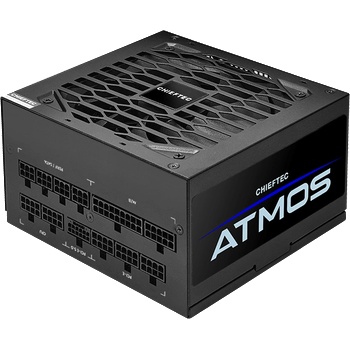

CHIEFTEC ATMOS series 850W 80 PLUS Gold (CPX-850FC)

Chieftec Atmos CPX-850FC

• Compliant with ATX 12V 3.0
• Support PCIe GEN5
• ECO Fan : Smart Fan Control
• Japanese Capacitors
• SRC Full-Bridge converter with DC to DC technology



The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports
PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional
performance up to 850W. The ATMOS series features a state-of-the-art technical
design including an SRC Full-bridge converter with DC-to-DC technology, and
 Japanese capacitors to ensure longevity and stability.

The ATMOS 120mm FDB silent fan optimizes the balance between cooling
and noise with excellent durability, while the ECO fan mode enables fanless
operations at low loads. CHIEFTEC’s multiple security protection technology is
designed to keep your system safe.






Specifications:

Weight (without/with package) 1.52kg / 3.04kgAC Input 100-240V~ / 10-5AFrequency 50 - 60Hz+5V 20A+3,3V 20A+5V & +3,3V combined 100W+12V1 70.8A+12V2 -+12V1, +12V2 combined 850WP. F. >0.9-12V 0.3A / 3.6W+5VSB 3.0A / 15WMaximum Power 850W20+4 PIN ATX 18 PIN EPS (4+4) 28 PIN PCIe (6+2) 2 / 216 PIN PCIe GEN5 1SATA 9MOLEX 420+4 PIN ATX 6008 PIN EPS (4+4) 2 x 7008 PIN PCIe (6+2) 2 x 700 | 700/15016 PIN PCIe GEN5 600SATA 3 x 550/100/100MOLEX 550/100/100/100



ATX12V Version ATX 12V 3.0Efficiency 80Plus GoldDimension (DxWxH) 140 mm x 150 mm x 86 mmPFC Active PFC (0.9)Fan 120mm FDB fanSecurity AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
OCP (Over-Current Protection)
