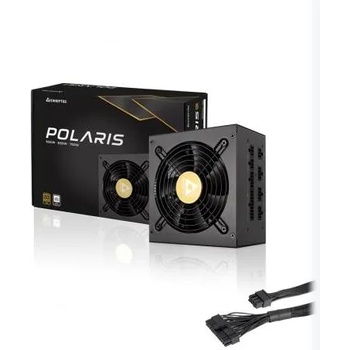

CHIEFTEC PPS-750FC 750W 80 PLUS Gold

Chieftec Polaris PPS-750FC, 750W retail

- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.

With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

Weight (without/with package) 2.285 kg / 2.590 kg
AC Input: 100-240V / 10A
Frequency: 50-60Hz
+5V: 22A
+3,3V: 22A
+5V & +3,3V combined 120W
+12V 1 62.5A / 750W
+12V 2 -
+12V 1 & +12V 2 combined -
P. F. : >0.9
-12V: 0.3A / 3.6W
+5VsB; 3.0A / 15W
Maximum Power: 750W

Connectors
20+4PIN ATX: 1
8 PIN EPS (4+4): 2
8 PIN PCIe (6+2): 4
SATA: 8
MOLEX: 3
FLOPPY: 1

Cable length
20+4PIN ATX: 650
8 PIN EPS (4+4): 650/150
8 PIN PCIe (6+2): 2x 500/150
SATA: 2x 450/150/150/150
MOLEX: 450/150/150/150
FLOPPY: Molex

Features
Specification: ATX 12V 2.4
Form factor: PS II
Efficiency: 80 PLUS® Gold
Dimension (DxWxH): 140mm x 150mm x 87mm
PFC: Active PFC
Fan: 120mm silent fan

Security
AFC (Automatic Fanspeed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over Temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Undervoltage protection)
