GM-30B-M-OP
- Dual-chamber design
- Combination of brushed aluminum and mesh front panel
- Side panel made of TEMPERED GLASS
- Compatibility with back-connect motherboards
- 3x 140mm PWM fans pre-installed

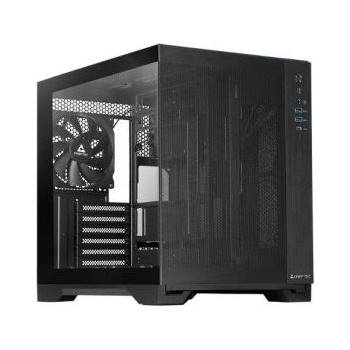

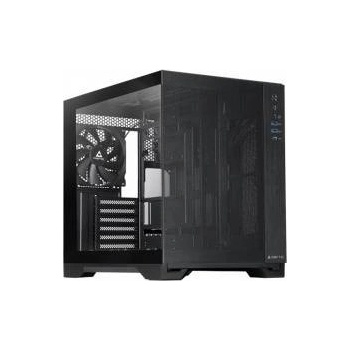

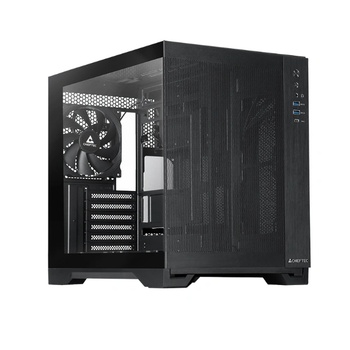

The CHIEFTEC Visio Air performance chassis features a dual-chamber layout to accommodate the latest back-connect motherboards, streamlining cable management for a cleaner interior view (ASUS BTF and MSI Project Zero compatible). The Visio Air comes with tempered glass on the side, a front combining brushed aluminum and mesh panel, along with two pre-installed 140mm PWM fans on the bottom and one 140mm PWM fan on the rear. This design enhances stability and airflow, effectively reducing heat accumulation inside the chassis while keeping noise levels low.
The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated configuration.
The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.
Color BlackMaterial 0.65-0.9mm SPCC and tempered glass at side panelMotherboard support Mini ITX, mATX, ATXDimension (DxWxH) 430mm x 295mm x 390mmWeight (without/with package) 6.8 kg / 8.3 kgDrive bay external --Drive bay internal 2x 2.5" and 2x 3.5Power supply ATX PSU (optional, ~200mm)Front I/O 1x USB3.2 Gen2 Type C, 2 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-InScope of delivery Set of screws, instruction manual
Bottom: 2x 140mm PWM fans pre-installed
Rear: 1x 140mm PWM fan pre-installedExpansion slots 6Cooling Compatibility Bottom: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360mm radiator
Top: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360 mm radiator
M/B side: 2x 120mm / 240mm radiator
Rear: 1x 120mm / 1x 140mmCPU cooler height (max. ) 175mmVGA card length (max. ) 410mm
