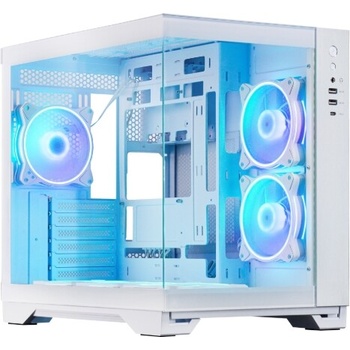

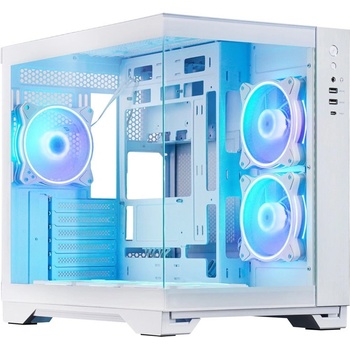

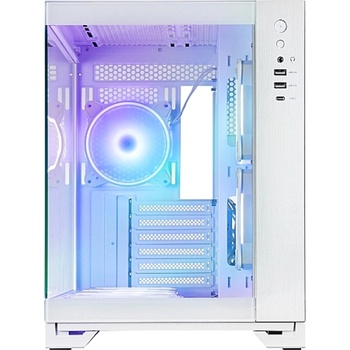

CHIEFTEC Visio white (GM-30W-TG-OP)

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.

The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated configuration.

The case comes with six pre-installed 120mm white A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacrificing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.

Material
Material 0.65-0.9mm SPCC and tempered glass at front & side panel

Motherboard support
Mini ITX, M-ATX, ATX

Dimension (DxWxH)
430mm x 295mm x 390mm

Drive bay external
No

Drive bay internal
2x 2.5" and 2x 3.5

Power supply
ATX PSU (optional, ~200mm)

Front I/O
1x USB3.2 Gen2 Type C, 2 x USB3.0 , Audio-out (AZALIA / HD-Audio), Mic-In

Pre-installed fans
Bottom: 3x 120mm A-RGB fans pre-installed
M/B side: 2x 120mm A-RGB fans pre-installed
Rear: 1x 120mm A-RGB fan pre-installed

Expansion slots
6

Cooling Compatibility
Bottom: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360mm radiator
Top: 3x 120mm / 2x 140mm / 240mm radiator /280mm radiator / 360 mm radiator
M/B side: 2x 120mm / 240mm radiator
Rear: 1x 120mm / 1x 140mm

CPU cooler height (max. )
175mm

VGA card length (max. )
410mm
