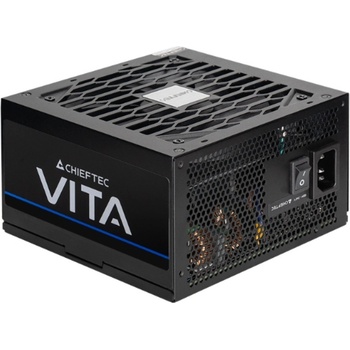

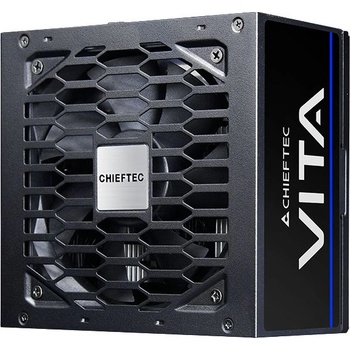

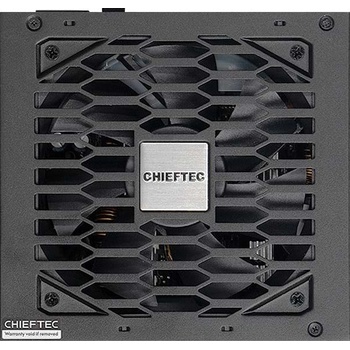

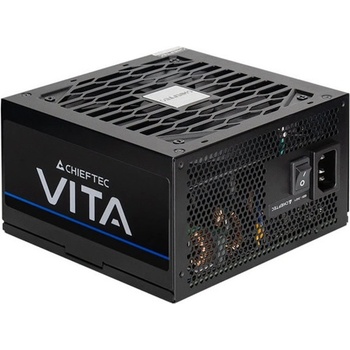

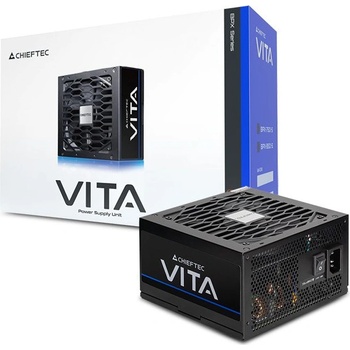

CHIEFTEC Vita 850W 80 PLUS Bronze (BPX-850-S)

The Chieftec Vita Series power supplies prioritize a competitive price-to-performance ratio while maintaining the trusted Chieftec quality.
With 80PLUS Bronze certified efficiency, the Vita Series is built on DC-to-DC technology to provide enhanced power efficiency and stability.
The Vita Series comes equipped with extra-long native black cables, making it suitable for mainstream gamers to build their systems, even in larger cases.
Additionally, its 120mm silent fan optimizes the balance between cooling performance and noise levels.
The Vita Series is your trusted reliable choice for all computing needs, incorporating all necessary modern protection and safety features.


Specifications



Technical data

AC Input 100-240V~ / 10-5AFrequency 50 - 60Hz+5V 18A+3,3V 18A+5V & +3,3V combined 100W+12V1 70.8A+12V2 -+12V1, +12V2 combined 850WP. F. >0.9-12V 0.3A / 3.6W+5VSB 3.0A / 15WMaximum Power 850W



Connectors

20+4 PIN ATX 18 PIN EPS (4+4) 28 PIN PCIe (6+2) 4SATA 6MOLEX 2



Cable length (mm)

20+4 PIN ATX 6508 PIN EPS (4+4) 2 x 7008 PIN PCIe (6+2) 2 x 500/150SATA/MOLEX 2 x 450/150/150/150



Features

A TX12V Version ATX 12V 2.53Efficiency 80Plus BronzeDimension (DxWxH) 140 mm x 150 mm x 86 mmPFC Active PFC (0.9)Fan 120mm silent fanSecurity AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
