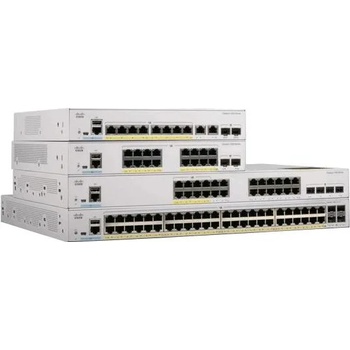

Cisco C1000-16T-2G-L

Marketing DescriptionCisco Catalyst 1000 Series switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 switches operate on Cisco IOS software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for Small and Medium Sized (SMB) organizations. Product Features

• Perpetual PoE+ support with a power budget of up to 740W
• CLI and/or intuitive web UI manageability options
• Network monitoring through sampled Flow (sFlow)
• Security with 802.1x support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
• Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
• Reliability with a higher Mean Time Between Failures (MTBF)

GeneralDevice TypeSwitch - 16 ports - ManagedEnclosure TypeRack-mountableSubtypeGigabit EthernetPorts16 x 10/100/1000 + 2 x Gigabit SFP (uplink)PerformanceForwarding bandwidth: 18 Gbps
Switching bandwidth: 36 Gbps
Forwarding rate (64‑byte L3 packets): 26.78 MppsCapacityUnicast MAC addresses: 15360
IPv4 unicast direct routes: 542
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 routes (static): 16
IPv6 routes (static): 16
IPv4 routes (Multicast): 1024
IPv6 groups (Multicast): 1024
IPv4/MAC security ACEs: 600
IPv6 security ACEs: 600
Active VLANs: 256
VLAN IDs: 4094
STP instances: 64
SPAN sessions: 4
MTU-L3 packet: 9198 byteJumbo Frame Support10240 bytesRouting ProtocolIGMP, MLDv2, MLD, MSTP, RSTP, STPRemote Management ProtocolSNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUSAuthentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v. 2 (SSH2)FeaturesBOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AXProcessorX ARM: 800 MHzRAM512 MBFlash Memory256 MBStatus IndicatorsStatusExpansion / ConnectivityInterfaces16 x 1000Base-T RJ-45
2 x 1000Base-X SFP uplink
1 x management RJ-45
1 x mini-USB Type B
1 x USB Type APowerPower DeviceInternal power supplyInstalled Qty1Voltage RequiredAC 120/230 V (50 - 60 Hz)MiscellaneousCompliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class ADimensions & WeightWidth26.8 cmDepth27.2 cmHeight4.39 cmWeight1.78 kgManufacturer WarrantyService & SupportLimited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 daysEnvironmental ParametersMin Operating Temperature-5 °CMax Operating Temperature50 °CHumidity Range Operating5 - 90%Min Storage Temperature-25 °CMax Storage Temperature70 °CHumidity Range Storage5 - 95%
