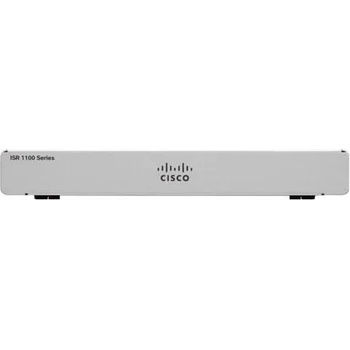

Cisco C1101-4P

CISCO ISR 1101 4 Ports GE Ethernet WAN Router
id="p3368986"> CISCO ISR 1101 4 Ports GE Ethernet WAN RouterManufacturer CISCOManufacturer Part No C1101-4PMarketing DescriptionThe Cisco ISR 1101 4-port is designed in a small form factor, and is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1101-4P model comes with four LAN ports. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane, so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. Product Features

• Perfect connectivity
  Access Ethernet, DSL, 4G LTE Advanced, and 802.11ac Wi-Fi. The 1000 Series is ideal for use as customer premises equipment.
• Increased performance
  Meet the demand for more bandwidth without more budget. The router's multicore architecture leverages higher data-plane performance, enabling high availability for network services.
• Integrated enterprise-class security
  Gain enterprise-class security and a highly secure WAN. Cisco Umbrella, Encrypted Traffic Analytics, and advanced threat defense provide high-performance encryption, VPN, firewall, and URL filtering.
• Advanced wireless LAN
  Enjoy wireless LAN capability at the branch, in a single box, that can run with or without a controller. The 1000 Series integrates 802.11ac Wave 2 wireless with Cisco Mobility Express as an access point in every router.

GeneralDevice TypeRouter - 4-port switch (integrated)Enclosure TypeRack-mountableConnectivity TechnologyWiredData Link ProtocolEthernet, Fast Ethernet, Gigabit EthernetPerformanceEncryption throughput: 350 MbpsNetwork / Transport ProtocolIPSec, PPPoE, DHCP, DNS, L2TPv3Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVPRemote Management ProtocolSNMP, RMON, CLI, TR-069Encryption AlgorithmDES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHAAuthentication MethodRADIUSFeaturesClass-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)Compliant StandardsIEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13RAM4 GBFlash Memory4 GBExpansion / ConnectivityInterfacesWAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP
LAN: 4 x 1000Base-T - RJ-45
USB 3.0: 1 xPowerPower DeviceExternal power adapter - 30 WattVoltage RequiredAC 120/230 V / DC 12 V (50/60 Hz)Power Consumption Operational30 WattMiscellaneousRack Mounting KitOptionalDimensions & WeightWidth19.05 cmDepth15.24 cmHeight2.79 cmWeight1.76 kgManufacturer WarrantyService & SupportLimited warranty - advance parts replacement - 1 year - response time: 10 daysEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating10 - 85% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
CISCO



.
