Cisco C1111-8P

CISCO ISR 1100 8 Ports Dual GE WAN Ethernet Router
id="p2964492"> CISCO ISR 1100 8 Ports Dual GE WAN Ethernet RouterManufacturer CISCOManufacturer Part No C1111-8PMarketing DescriptionThe Cisco ISR 1111 8-port router with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1111-8P model comes with eight LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. Product Features

• Consistent, high application performance levels
  The router can run multiple services simultaneously with minimal performance degradation.
• USB-based console access
  A micro USB console port supports management connectivity when traditional serial ports are not available.

GeneralDevice TypeRouter - 8-port switch (integrated)Enclosure TypeDesktopConnectivity TechnologyWiredData Link ProtocolEthernet, Fast Ethernet, Gigabit EthernetPerformanceEncryption throughput: 250 MbpsNetwork / Transport ProtocolIPSec, PPPoE, DHCP, DNS, L2TPv3Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVPRemote Management ProtocolSNMP, RMON, CLI, TR-069Encryption AlgorithmDES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHAAuthentication MethodRADIUSFeaturesPower over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO technology, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)Compliant StandardsIEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13RAM4 GBFlash Memory4 GBStatus IndicatorsStatusExpansion / ConnectivityInterfacesWAN / LAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP

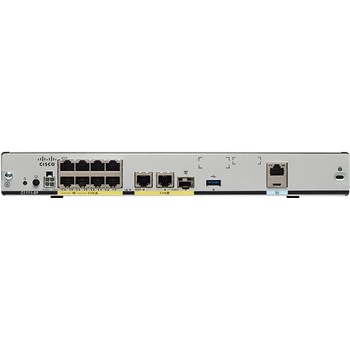

WAN: 1 x 1000Base-T - RJ-45
LAN: 2 x 1000Base-T - RJ-45
LAN: 2 x 1000Base-T (PoE+) - RJ-45
LAN: 4 x 1000Base-T (PoE) - RJ-45
USB 3.0: 1 x consolePowerPower DeviceExternal power adapterVoltage RequiredAC 120/230 V (50 - 60 Hz)Power Consumption Operational66 WattSoftware / System RequirementsOS ProvidedCisco IOS XE UniversalDimensions & WeightWidth32.3 cmDepth23 cmHeight4.2 cmWeight2.59 kgEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature65 °CHumidity Range Operating5 - 95% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
