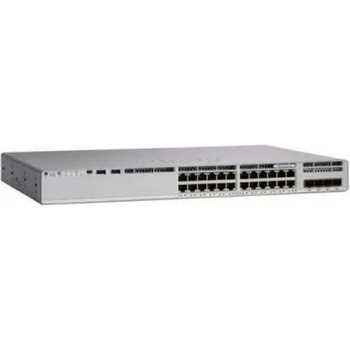

Cisco C9200-24T-A

CISCO Catalyst 9200 24-port data only Network Advantage DNA subscription required
id="p3372827"> CISCO Catalyst 9200 24-port data only Network Advantage DNA subscription requiredManufacturer CISCOManufacturer Part No C9200-24T-AMarketing DescriptionThe Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time. Product Features

• Super secure
  Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch. ??
• Always on
  Catalyst 9200 series switches provide enterprise-level resiliency, analytics, and assurance to keep your business up and running seamlessly.

GeneralDevice TypeSwitch - 24 ports - L3 - Managed - stackableEnclosure TypeRack-mountableSubtypeGigabit EthernetPorts24 x 10/100/1000PerformanceStacking bandwidth: 160 Gbps
Switching bandwidth: 128 Gbps
Forwarding rate: 190.4 MppsCapacityVirtual networks: 4
IPv4 routing table entries: 4000
IPv6 routing table entries: 2000
Flexible NetFlow entries: 16000
Packet buffer size: 6 MB
VLAN IDs: 4096
Switched virtual interfaces (SVIs): 1000MAC Address Table Size32000 entriesJumbo Frame Support9198 bytesRouting ProtocolOSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTPRemote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONFEncryption Algorithm128-bit AESFeaturesARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)RAM4 GBFlash Memory4 GBExpansion / ConnectivityInterfaces24 x 10/100/1000 Base-T RJ-45
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45Expansion Slots1 (total) / 1 (free) x Expansion SlotPowerPower DeviceInternal power supply - hot-plugMax Supported Qty2Power RedundancyOptionalPower Provided125 WattVoltage RequiredAC 100-240 V (50 - 60 Hz)MiscellaneousMTBF587,800 hoursCompliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35Dimensions & WeightWidth44.5 cmDepth35 cmHeight4.4 cmWeight5 kgEnvironmental ParametersHumidity Range Operating5 - 90% (non-condensing)Min Storage Temperature-40 °CMax Storage Temperature70 °CHumidity Range Storage5 - 90% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
