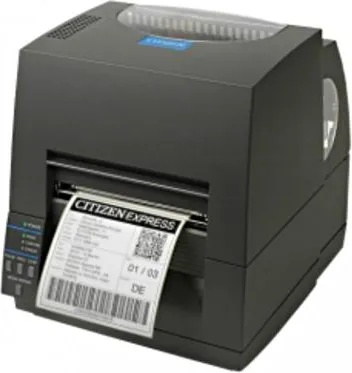

Citizen CL-S631 II (CLS631IINEBXX)



Citizen CL-S631II



Desktop printing with high, 300dpi performance

Our desktop range is designed to provide simple, low-cost, high quality printing and the best-in-class CL-S631II offers the finest resolution, providing 300 dpi for the reproduction of logos, pictures and EAN-compliant barcodes.   The CL-S631II is supplied as standard with Cross-Emulation technology with both Zebra and Datamax emulations, plus a range of connectivity options including USB, Ethernet and WiFi.



• Paper width: Variable paper width - 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
• Paper load: Durable design - Citizen's proven Hi-Lift all-metal mechanism
• Printing Speed:

  • Fast print out - 4 inches per second (100 mm per second)
• Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
• Ribbon options: Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons
• Paper thickness: Paper thickness up to 0.250mm
• Hi-Open case for vertical opening, no increase in footprint and safe closing.
• No more unreadable labels - the ARCP ribbon control technology assures clear prints.
• Low space requirement - integrated power supply enables clean work station
• Energy:

  • Internal power supply for reliability
• Media sensor:

  • Black mark sensor
  • Adjustable media sensor
  • Label gap sensor





Printing Technology Thermal Transfer + Direct ThermalResolution

• 300 dpi

Print Speed (maximum)

• 4 inches per second (100 mm/s)

Print Width (maximum) 4 inches (104 mm)Media Width (min to max) 0.5 - 4.6 inches (12.5 - 118 mm)Media Thickness (min to max) 63.5 to 254 mMedia Length (min to max) 0.25 to 64 inches (6.35 to 1625.6 mm)Roll Size (max), Core Size Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm)Ribbon size 2.9 inches (74mm) maximum outside diameter. 360 metres length. 1 inch (25mm) coreRibbon winding & type Ink side in or out, switch selectable. Wax, Wax/Resin or Resin TypeRibbon system ARCP automatic ribbon tension adjustmentMechanism Hi-Lift metal mechanism with wide opening headMedia Sensor Fully adjustable gap, notch and reflective black markMain Interface Dual Interface Serial (RS-232C), USB (version 2.0, full speed)Case Hi-Open industrial ABS case with safe closeControl panel 4 buttons and 4 LEDsFlash (Non-Volatile Memory) 16 MB total, 4MB available for userRAM (standard Memory) 32MB total, 8MB available for userEmulations (Languages)

• Datamax DMX
• Cross-Emulation - autoswitch between Zebra® and Datamax® emulations
• Zebra ZPL2
• CBI BASIC Interpreter
• Eltron EPL2

Size (W x D x H) and Weight

• 231 x 289 x 270 mm, 4.5 Kg

Cutter Guillotine type, Dealer Installable
