Citizen CTS310IIEBK

Citizen CT-S310II

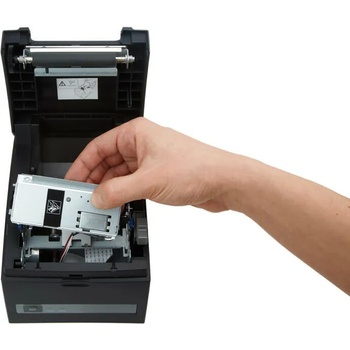

The industry-leading CT-S310II is a compact and advanced receipt and bar code printer.  Featuring an ENERGY STAR® power supply, paper-save function, halogen-free housing and packaging produced from recycled materials, the CT-S310II is truly environmentally friendly.   With an easy maintenance cutter and patented long life printing (LLP) technology, capable of extending print life to over 200km, the CT-S310II offers the ultimate combination of performance and energy efficiency.



Specification



Printing Technology

Direct Thermal

Print Speed (maximum)

160 mm /sec.

Print Width (maximum)

48 / 72 mm (on 58 / 80 mm paper)

Media Width (min to max)

58 or 80 mm

Flash (Non-Volatile Memory)

192K bytes for character, 384K bytes for graphic

Drivers and software

Free-of-charge from website, including support for various platforms

Size (W x D x H) and Weight

140x195x132 mm, 1.9 Kg

Emulations (Languages)

ESC/POS

Barcodes

UPC-A

UPC-E

EAN-13 (JAN-13)

EAN-8(JAN-8),

Codabar, ITF

CODE39

CODE93

CODE128

CODABAR(NW-7)

PDF 417

QR Code

GS1-Databar

Media type

Thermal receipt paper

Cutter

Guillotine type, full and partial

Drawer kick-out

2 Drawers

Power supply

100 – 240V, 47-63 Hz, Engery Star approved

Reliability

200 Million pulses or 150 Km, 2 million cuts

EMC and safety standards

CE

TUV

UL

C-UL

FCC class A

VCCI

Number of columns

On 80mm paper up to 72 digits (8 x 16 font C)

On 80mm paper up to 64 digits (9 x 24 font B)

On 80mm paper up to 48 digits (12 x 24 font A)

On 58mm paper up to 52 / 48 digits (8 x 16 font C)

On 58mm paper up to 46 / 42 digits (9 x 24 font B)

On 58mm paper up to 35 / 32 digits (12 x 24 font A)

Character table / Code page

863

860

Katakana

Thai code18

WPC1252

437

850

852

857

858

864

865

866

Line spacing

4.23mm (1/6 inch); adjustable by user comand

Input buffer

4K bytes / 45 bytes

Operation environment

+5 to +45°C, 10% - 90% RH, non condensing

Storage environment

-20 to +60°C (10% to 90% RH non condensing)

Resolution

203 dpi

Main Interface

Dual Interface Serial (RS-232C), USB (version 1.1)
