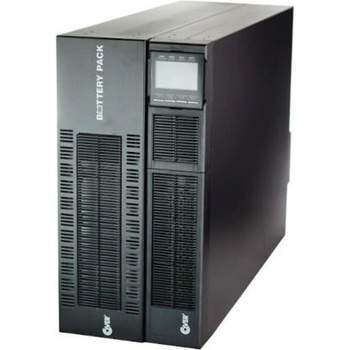

Comex Cover CORE 6K 6000VA 6000W

Comex Cover CORE 6K

• True On-Line Double Conversion Technology (EN 62040-3) provides perfect output voltage parameters, regardless of the input voltage and the load.
• Automatic Bypass (Static Switch) provides continuous load supply in critical conditions, such as overheating or inverter failure.
• Frequency converter feature lets you set the output frequency to 50Hz or 60Hz.
• USB, RS-232, Dry Contact for UPS (Uninterruptible Power Supply) and load supervision and control.
• TVSS surge suppressors and built-in RJ-45 connectors guarantee safety of data send through network.
• Ethernet Interface for computer-network communication with SNMP protocol support
• Software controlled output receptacles enable managing groups of load.
• Small dimensions – all power units have 2U only what makes installation and operation easy and compact.
• High efficiency reduces heat dissipation and decreases operating costs.
• ECO-Mode gives possibility of significant cost reduction and in practice stops heat emission. Efficiency up to 99%.
• Backup time extension possibility provides exact fitting for required autonomy time.
• Automatic diagnostics ensure that components and parameters are controlled without user interference.
• High input power factor reduces the value of current drawn from the mains.
• High output power factor (PF=1 for 6-10kVA) allows load of versatile characteristics to be connected.
• Wide input voltage range for normal mode ensures that the batteries are used only if necessary - in fact, only when the input voltage is completely lost.
• Wide input frequency range for normal mode gives possibility for seamless operation with different power sources - as mains or the generating set.
• Automatic start up ensures maintenance-free operation even after the unit was switched-off after long time mains failure.
• Advanced Battery Management gives reliability of optimal charging and using batteries, elongates its lifetime and reduces operation costs.
• Battery start up feature enables unit start up without mains supply.
• Excellent voltage quality is provided by IGBT inverter and high-frequency PWM modulation method; the output voltage has always stable parameters, independent of input disturbances and load characteristics.
• High overload capacity indicates power reliability during transient conditions and high resistance on handling faults.
• Advanced power management software provides full control of UPS.
• User configurable settings – nominal voltages, frequencies, preferred operating modes, ways of communication – widens the range of possible applications.
• REPO – enables remote emergency power off, in case of emergency
• Extra charger inbuilds in 6 and 10kVA models
• Possibility to parallel units 6 and 10kVA for capacity or redundancy.



+ Internal batteries 20 x 9 Ah (Battery module)



Tech specs:

Power 6000 VA
6000 WNo. of phases IN : OUT 1:1InputNominal voltage 208 / 220 / 230 / 240 VacVoltage range -30% ÷ +30% @ 100% ≥ load > 80%
-40% ÷ +30% @ 80% ≥ load > 70%
-48% ÷ +30% @ 70% ≥ load > 60%
-52% ÷ +30% @ 70% ≥ load > 0%Frequency 50 / 60 HzFrequency range -20% ÷ +20%THDi130% - 1 sek. Efficiency on-line mode >95%Efficiency eco Mode 99%Controlled socet groups YesCreast factor 3:1BatteriesAmount of internal batteries -Cold start YesConnector for external batteries YesCharging time  4 hours up to 90% capacityWeight and dimensionsWeight and dimensions of UPS
(W x D x H) [mm] 438 x 665 x 88 (2U)17,0 kgWeight and dimensions of battery module
(W x D x H) [mm] 438 x 630 x 133 (3U)63,0 kgCommunicationsWorking indicator LCD panel + sound alarmCommunications Standard: RS232, USB, TVSS, SNMP Slot, REPOEnviromentalNoise level
