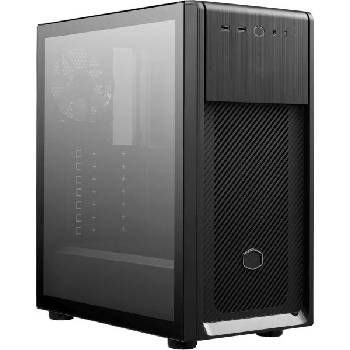

Cooler Master Elite 500 E500-KNNN-S00

CoolerMaster Elite 500



Steadfast

The Elite 500 is the essential solution for optimized cooling. Substantial ventilation on the front panel allows fresh air into the system for both air-cooled and liquid cooled configurations.

For simple tasks, the Elite 500 is a cost-effective solution to professional computing. For higher-demand tasks, the Elite 500 boasts a high compatibility for upgrades, able to house liquid cooling and provides clearance for the longest, widest graphics cards.

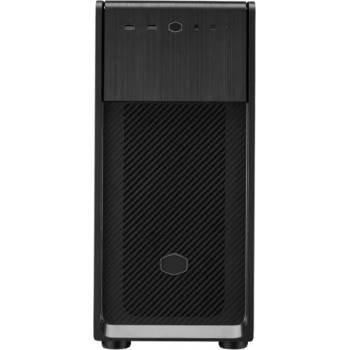

Large Filtered Intakes

The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.



Specifications:

Series
Elite Series

Size
Mid Tower

Model Number
E500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD)

Color(s)
Black

Materials
Steel, Plastic, Tempered Glass

Dimensions (L x W x H)
409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)

Volume
37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)

Motherboard Support
Mini ITX, Micro ATX, ATX

Expansion Slots
7

Kensington Lock
N/A

5.25" Drive Bays
0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)

2.5" / 3.5" Drive Bays (Combo)
2

2.5" Drive Bays
3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)

I/O Panel
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans - Rear
1x 120mm

Fan Support - Top
2x 120mm, 2x 140mm

Fan Support - Front
2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)

Fan Support - Rear
1x 120mm

Radiator Support - Top
120 / 240mm (32mm max motherboard component height)

Radiator Support - Front
120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)

Radiator Support - Rear
120mm

Clearance - CPU Cooler
TG: 161mm, Steel: 163mm

Clearance - PSU
160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)

Clearance - GFX
350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)

Cable Routing
18.5mm

Dust Filters
Front, Top, Bottom

Power Supply Support
Bottom Mount, ATX
