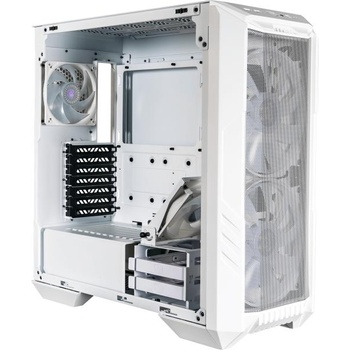

Cooler Master HAF 500 White (H500-WGNN-S00)

Cooler Master HAF 500



Homecoming Classic

Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.

Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

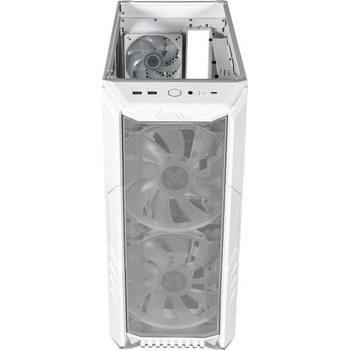

Mesh Front Panel

Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.

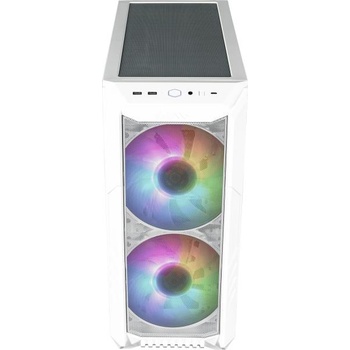

Dual 200MM ARGB Fans

Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.

Screwless & Tool-free TG Side Panel Design

The tempered glass side panel is secured with pins for easy removal, facilitating  quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.

Versatile Cooling Options

Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Exterior Color
Black, White

Materials - Outlook
Steel, Mesh, Plastic

Materials - Side Panel
Tempered Glass, Steel

Dimensions (L x W x H)
516 x 224 x 510mm (incl. Protrusions)

Motherboard Support
ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features)

Expansion Slots
7

5.25" Drive Bays
N/A

2.5" / 3.5" Drive Bays (combo)
2

2.5" Drive Bays
2

I/O Panel
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x USB 3.2 Gen 2 Type-C, 1x single Audio Jack, 1x Reset/ARGB button

ARGB Controller
ARGB Hub

Pre-installed Fans - Front
2x 200mm ARGB Fan

Pre-installed Fans - Rear
1x 120mm SickleFlow PWM ARGB

Pre-installed Fans - Others
1x 120mm SickleFlow PWM (GPU Fan)

Fan Support - Top
3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Front
3x 120mm, 2x 140mm, 2x 200mm, *200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness

Fan Support - Rear
1x 120mm

Fan Support - Top on HDD cage
1x 120mm

Radiator Support - Top
120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Front
120mm, 140mm, 200mm, 240mm, 280mm, 360mm

Radiator Support - Rear
120mm

Clearance - CPU Cooler
167mm/6.5"

Clearance - PSU
180mm/7.1"

Clearance - GFX
410mm/16.1"

Cable Routing - Behind Motherboard Tray
30mm

Dust Filters
Top, Bottom

Power Supply Support
Bottom mount, ATX
