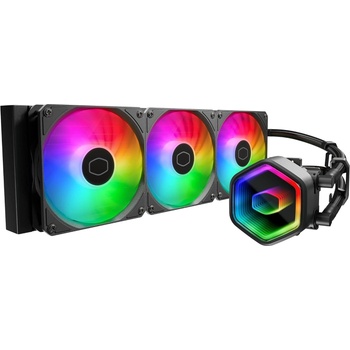

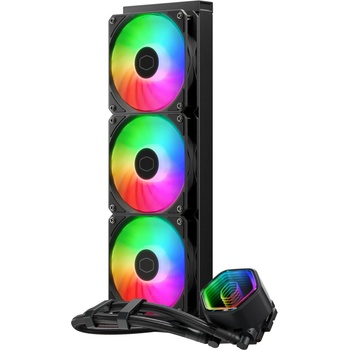

Cooler Master MasterLiquid 360 Core II ARGB (MLW-D36M-A18PA-R1)

Introducing the redesigned MasterLiquid Core II Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core II brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core II Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.

Innovative Design​:
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build​.

Patented design:
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality:
Fully automated production and assembly of the pump with fully recorded production history.

Dual Chamber Pump​:
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.

Optimum Tubing Length​:
400 mm tubing allows for effortless cooler installation in any orientation.

Specifications

CPU Socket
Intel LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 Socket

CPU Socket
AMD AM5 / AM4 socket

Radiator Material
Aluminum

Radiator Dimensions
394 x 119.2 x 27.2 mm / 15.5 x 4.7 x 1.1 inch

Pump Dimensions
84.5 x 78.5 x 59.4 mm​ / 3.3 x 3.1 x 2.3 inch

Pump Profiles
Addressable RGB

Pump Speed
2800 ±10% RPM

Pump MTTF
>35,000 Hours

Pump Noise Level
25 dBA (Max)

Pump Rated Voltage
12 VDC

Pump Power Consumption
6W

Pump Connector
3-Pin ARGB + 4-Pin PWM

Tube Length
400 mm

Fan Dimensions (L x W x H)
120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch

Fan LED
Addressable RGB

Fan Speed
650-1750 RPM ± 10%

Fan Airflow
122.4 m³/h (71.9 CFM) (Max)

Fan Air Pressure
1.86 mmH₂O (Max)

Fan MTTF
>40,000 Hours

Fan Noise Level
27.2 dBA (Max)

Fan Bearing Type
Rifle Bearing

Fan Connector
7-Pin PWM + ARGB

Fan Rated Voltage
12 VDC

Fan Rated Current
0.26 A

Fan Safety Current
0.37 A

Fan Power Consumption
3.12W
