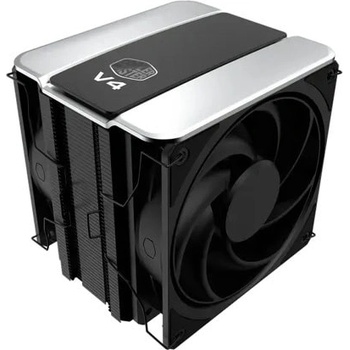

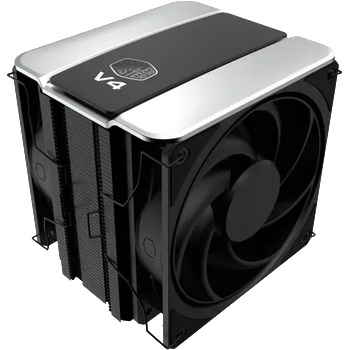

Cooler Master V4 Alpha 3DHP (MAZ-T2HP-217PK-R1)

Advanced Cooling, Elevated​​:
The Cooler Master V4 Alpha 3DHP Black CPU air cooler delivers exceptional cooling performance and sleek aesthetics, featuring the company’s proprietary 3DHP Technology for rapid heat dissipation and peak system efficiency to rival the performance of conventional four-heat-pipe coolers. Using just two heat pipes, it is engineered to maintain optimal processor temperatures under heavy workloads. The V4 Alpha 3DHP Black has been crafted in the shape of a classic V automotive engine but delivers performance comparable to that of one of the most efficient electric cars available. The V4 Alpha 3DHP Black CPU air cooler stands out with its innovative design and excellent performance. Built for enthusiasts and perfected for professionals, V4 Alpha 3DHP Black isn’t just a cooler, it’s the heartbeat of your high-performance machine.
Less heat pipes. More cooling efficiency.
Less noise. More reliability.

Cooler Master Proprietary 3DHP Technology​:
3DHP technology redefines heat pipe design by adding a third dimension—an extra pipe that fills the dead zone in standard U-shaped layouts. This added connection improves heat transfer in a slimmer, more efficient design. ​
It delivers the cooling power of a four-pipe solution with a more streamlined layout—giving you lower temps, quieter fans, and more flexibility, whether you’re building for silence or pushing your system to the limit.

Specifications

CPU Socket
Intel LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156
AMD AM5 / AM4

Dimension
133 x 114 x 161 mm

Heat Sink Material
2 x 3DHP / Aluminum Fins

Fan Item
Front / Rear

Fan Dimensions (L x W x H)
120 x 120 x 25mm

Fan LED Profiles
Non-LED

Fan Quantity
Front: 1, Rear: 1

Fan Speed
Front: 0-2050 RPM​ ± 10%, Rear: 0-1850 RPM​ ± 10%

Fan Airflow
Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)

Fan Pressure
Front: 2.69 mmH2O, Rear: 1.77 mmH2O

Fan MTTF
>200,000 Hours

Fan Pressure
Front: 22.6 dBA, Rear: 20 dBA

Fan Bearing Type
Loop Dynamic Bearing

Fan Power Connector
4-Pin (PWM)

Fan Rated Voltage
12 VDC

Fan Rated Current
Front: 0.12 A, Rear: 0.08 A

Fan Safety Current
0.35A

Fan Power Consumption
Front: 1.44 W, Rear: 0.96 W

Fan Size
120

Heatpipes
2

Cooler Type
Air Cooler
