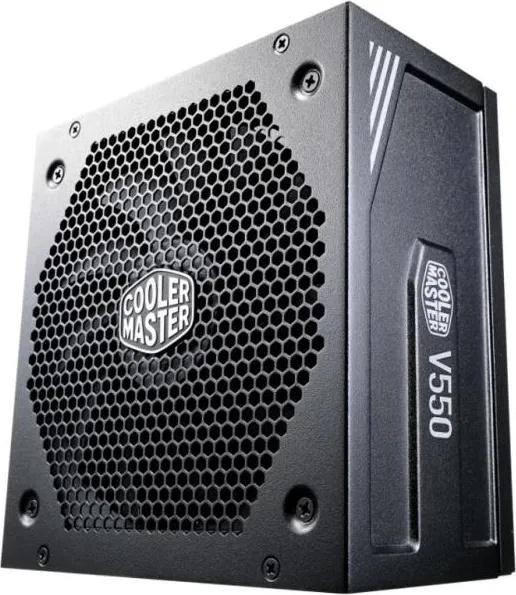

Cooler Master V550 Gold V2 550W 80 PLUS Gold (MPY-550V-AFBAG-EU)

Захранване CoolerMaster V550 Gold-V2

MPY-650V-AFBAG

• 80 Plus Gold Certified


• Half-bridge LLC Resonant Converter And DC-DC Technology


• Silent 135mm FDB Fan


• 40% Semi-fanless Mode With Hybrid Switch


• 16AWG PCIE Cables


• 10 Year Warranty

The efficiency of your power supply unit is important because it directly affects you system's performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit's ability to move power from the wall to your components. The higher a PSU's efficiency is, the lower the total amount of power it needs to power your system. The V Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

The V Gold - v2 is a professional grade power supply unit made for the normal user. It's more than just the 80 PLUS Gold efficiency rating. It's the performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The half-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

Cabling is often the most troublesome part of building a PC. The V Gold can't solve all your cabling problems but it's an excellent place to start. With full control and customization of your cables, you don't have to have excess cables cluttering your PC. This level of control can reduce cable bulk which can increase airflow and make your system look as great as it runs. And with the included 16AWG PCIe cables, you'll get increases to both efficiency and style.

Specifications:

• ATX Version ATX 12V V2.52


• PFC Active PFC


• Input Voltage 100-240V


• Input Current 8-4A


• Input Frequency 50-60Hz


• Dimensions (L x W x H) 160 x 150 x 86 mm


• Fan Size 135mm


• Fan Bearing FDB


• Fan Speed 1161 RPM


• Noise Level @ 20% 0 dBA


• Noise Level @ 50% 18.3 dBA


• Noise Level @ 100% 24.9 dBA


• Efficiency 90% @ Typical Load


• 80 PLUS Rating 80 PLUS Gold


• ErP 2014 Lot 3 Yes


• Operating Temperature 0-50°C


• Power Good Signal 100 - 500 ms


• Hold Up Time 17ms


• MTBF >100,000 Hours


• Protections OVP, OPP, SCP, OCP, UVP, OTP


• Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB


• ATX 24 Pin Connectors 1


• EPS 4+4 Pin Connectors 1


• EPS 8 Pin Connector 1


• SATA Connectors 8


• Peripheral 4 Pin Connectors 4


• PCI-e 6+2 Pin Connectors 2


• Series V Gold Series


• 80 Plus Gold


• Modular Full Modular


• Wattage 500 to 750W
