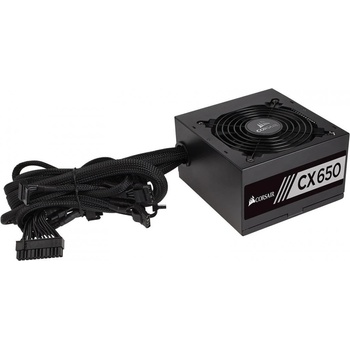

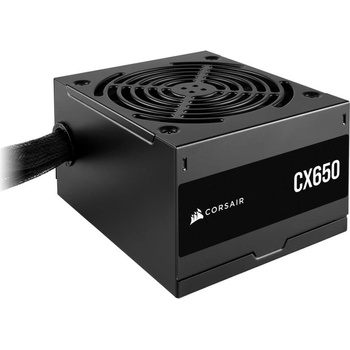

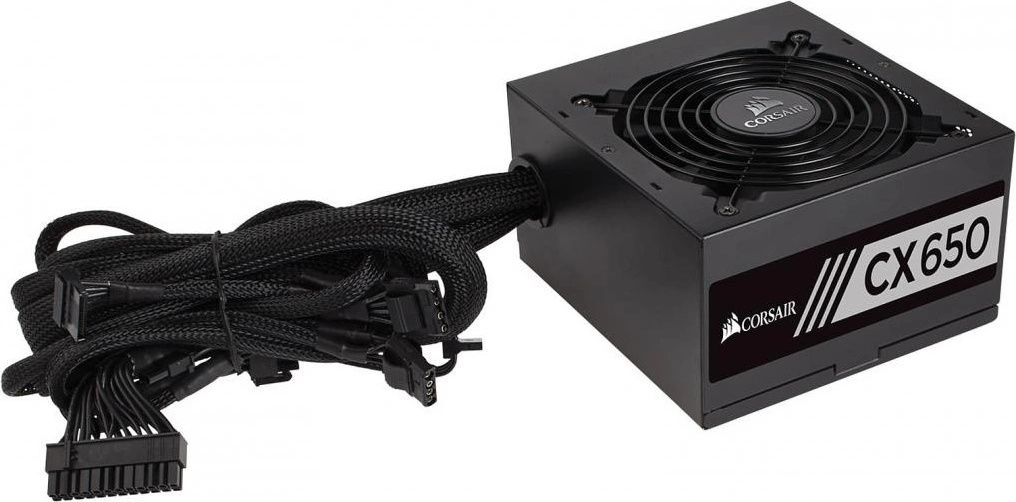

Corsair CX650 650W 80 PLUS Bronze (CP-9020278-EU)

CORSAIR CX Series CX650 PSU 650 Watt 80 PLUS Bronze




Manufacturer
CORSAIR

Manufacturer Part No
CP-9020278-EU



Marketing Description
CX Series power supply units provide modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. It is black with black cable sleeving and connectors and a thermally controlled 120mm fan. The LLC resonant topology with DC to DC ensures complete compatibility with all modern day PCs.

Product Features

Low noise80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation. Good looksThe matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look. Reliable and compatibleCX Series is built and tested to strict standards for trouble-free installation and smooth operation. Corsair engineering and quality controlEvery Corsair power supply is designed by California engineering team and built to exact specifications. The same care that goes into the design and testing of the renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget. Ample connectors and long cablesLong cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices. Large-diameter, thermally controlled fanOnce you've installed a PSU, you shouldn't have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you're pushing your system hard.

General

Device Type

Power supply - internal

Specification Compliance

ATX12V / EPS12V

PSU Form Factor

ATX

Power Device

Input Voltage

AC 100-240 V

Frequency Required

47 - 63 Hz

Power Output Connectors Details

1 x power 24 pin ATX with detachable 4 pin section

1 x power 8 pin EPS12V with detachable 4 pin ATX12V section

2 x 8 pin PCI Express power with detachable 2 pin section

2 x 4 PIN internal power

3 x 15 pin Serial ATA power

Output Voltage

+3.3, +5, +12 V

Power Capacity

650 Watt

Output Current

+3.3V - 24 A

+5V - 20 A

+12V - 52 A

-12V - 0.3 A

+5VSB - 3 A

Efficiency

88%

80 PLUS Certification

80 PLUS Bronze

Miscellaneous

Included Accessories

Mounting screw

Cables Included

AC power cable

MTBF

100,000 hours

Cooling System

120 mm fan

Manufacturer Warranty

Service & Support

Limited warranty - 5 years

Dimensions & Weight

Width

15 cm

Depth

12.5 cm

Height

8.6 cm

Technical data provided by third party. We assume no liability for errors within these data.
