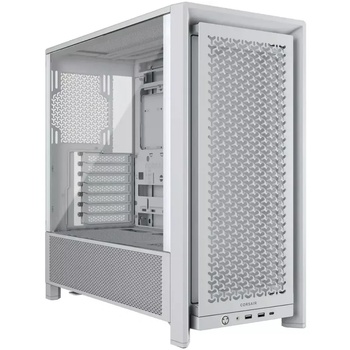

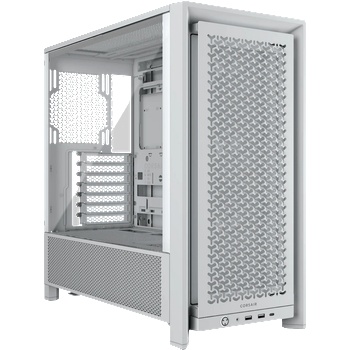

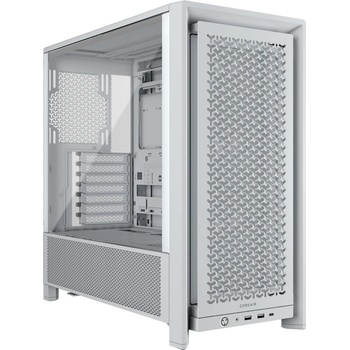

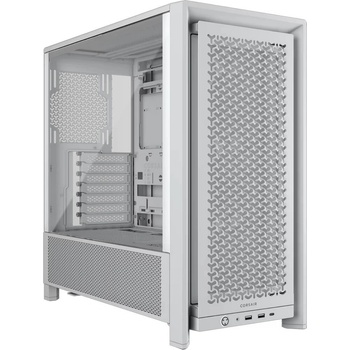

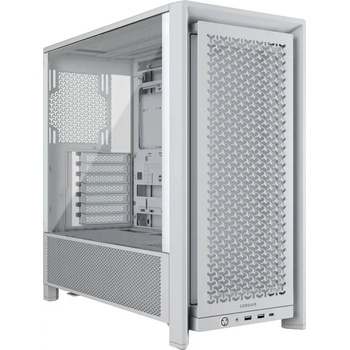

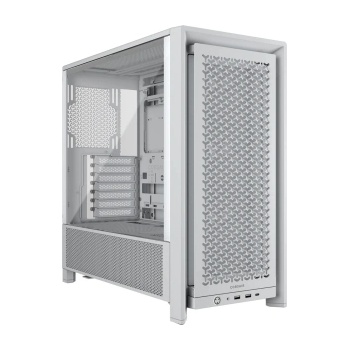

Corsair Frame 4000D RS White (CC-9011313-WW)

Corsair Frame 4000D RS

ENDLESS MODULAR POSSIBILITIES

The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.

This case evolves with your needs, offering near limitless options for upgrades and changes.

INFINIRAIL FAN MOUNTING SYSTEM

This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

UP TO 12% MORE AIRFLOW*

Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.

*Compared to the previous 4000D Airflow front panel

DUAL 360mm RADIATOR SUPPORT

Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

THREE RS120 FANS INCLUDED

RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.



NO VISIBLE CABLES 

Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.

SAG-FREE GRAPHICS CARDS

Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD

Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

Tech Specs



Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)Case Height 486Case Length 490Case Width 239Material Steel, Tempered Glass, 3D-Y Airflow Steel, PlasticMotherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)Color WHITECase Size Mid-TowerRadiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mmCase Window Tempered GlassCompatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITANInternal 3.5" Drive Bays 2Internal 2.5" Drive Bays 4Maximum CPU Cooler Height 170mmMaximum PSU Length 220mmCase Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/outMaximum GPU Length 430mmCase Expansion Slots 7 Horizontal or 3 VerticalCase Power Supply ATXRadiator Support - Top 360mm, 280mm, 240mmRadiator Support - Front 360mm, 280mm, 240mmRadiator Support - Bottom NoneRadiator Support - Side 360mm, 280mm, 240mmRadiator Support - Rear 140mm, 120mmFan Support - Top 3x 120mm, 2x 140mmFan Support - Front 3x 120mm, 2x 140mm, 2x 200mmFan Support - Bottom 2x 120mmFan Support - Side 3x 120mm; 2x 140mmFan Support - Rear 1x 120mm, 1x 140mmFront IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANELReverse Connector Motherboard Support YesIncluded Fans RS SeriesDust Filtration YesCable Routing Space 37mmRapidRoute Included NoLeft Side Panel Tempered GlassRight Side Panel SteelVertical Mount Support Supported (Riser Card Sold Separately)
