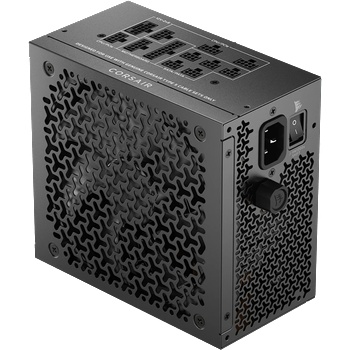

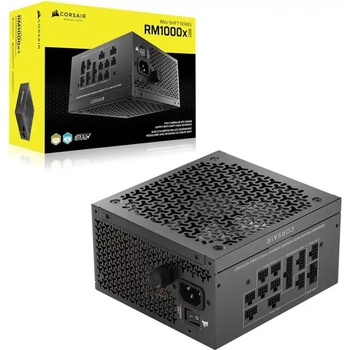

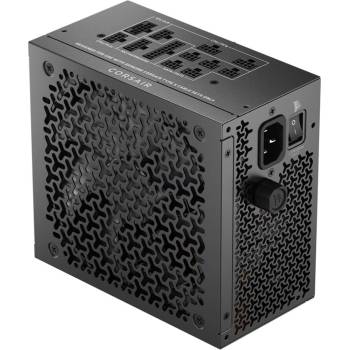

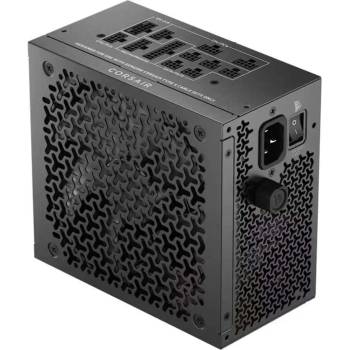

Corsair RM1000x Shift (CP-9020300-EU)

Corsair RM1000x Shift



SIDE-MOUNTED CONNECTIONS

A patented PSU panel features modular, compact Type-5 connectors located on the side of the power supply, making it easier to plug in and manage your cables.

*30mm of clearance between the PSU and side panel is required.



NATIVE 12V-2x6 GPU POWER CABLE

Power modern graphics cards, such as the NVIDIA GeForce RTX 50 Series, using the included 12V-2x6 cable with a dual-color connector for visual confirmation of a secure GPU-side connection for easy, worry-free power delivery.

ATX 3.1 COMPLIANT and PCIe 5.1 READY

The RMx SHIFT Series features the latest standards for power delivery and connectivity to provide efficient, reliable power. RMx SHIFT Series are built with a robust resonant LLC topology with DC-DC conversion and 105°C-rated Japanese industrial-grade capacitors.

FULLY MODULAR TYPE-5 CONNECTORS

CORSAIR Type-5 PSU cables take up less space, which combines with the modular design to allow for easier cable management.

MANUAL FAN SPEED CONTROL KNOB

Want to get more air through the PSU or to exhaust heat from your case? Override the Zero RPM Mode and low-noise profile with the manual fan override knob, increasing fan speed and airflow.

140mm FLUID DYNAMIC BEARING FAN

A Fluid Dynamic Bearing fan with a magnetic dome structure minimizes noise, while Zero RPM Mode eliminates fan noise entirely at low to medium loads.

105°C-RATED JAPANESE CAPACITORS

Built with 100% industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

50°C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power even under high-stress conditions.



DEBOSSED-PVC CABLE KIT INCLUDED

The ultra-flexible cable kits make cable management easy and the included low-profile cable combs keep cables tidy for a sophisticated look and an easier build.



RM1000x SHIFT POWER TABLE



RM 1000x SHIFT CABLE LISTING

QTY

CABLE

CONNECTORS PER CABLE

TOTAL CONNECTORS

CONNECTOR SPACING

TOTAL LENGTH

CABLE TYPE

1

ATX Motherboard (24-pin) - Modular

1

1

610mm

610mm
(± 10mm)

Debossed

2

ATX12V / EPS12V (4+4-pin) - Modular

1

2

650mm

650mm
(± 10mm)

Debossed

2

8-pin PCIe (6+2-pin) - Modular

1

2

650mm

650mm
(± 10mm)

Debossed

1

90° 12V-2x6 to 600W 12V-2x6 (12+4-pin) - Modular

1

1

650mm

650mm
(± 10mm)

Debossed

1

600W 90° 12V-2x6 to 2x 8-pin PCIe (6+2-pin)

2

2

650mm

650mm
(± 10mm)

Debossed

4

3 SATA - Modular

3

12

500mm,
100mm,
100mm

700mm
(± 10mm)

Debossed

1

4 PATA - Modular

4

4

450mm, 100mm, 100mm, 100mm

750mm
(± 10mm)

Debossed



Tech Specs



Cybenetics Efficiency GoldCybenetics Noise APATA Connector 4EPS Connector 2SATA Connector 12Fan Bearing Technology FDBModern Standby YesDimensions 160mm x 150mm x 86mmCable Type Type 5PCIe Connector 4Fan Size MM 140mmContinuous Power W 1000 WattsATX Connector 1ATX12V Version 3.1MTBF Hours 100,000 hoursWeight 3.10kg
