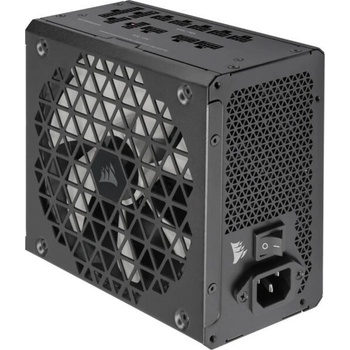

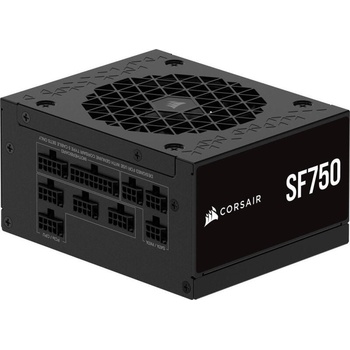

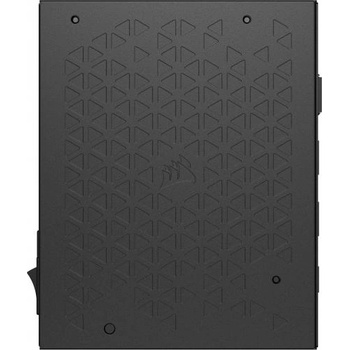

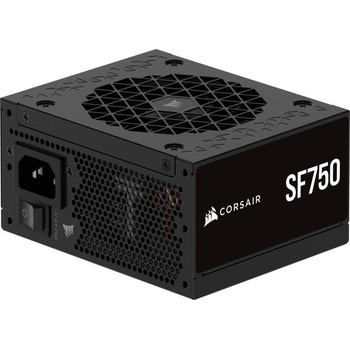

Corsair SF Series SF750 750W 80 PLUS Platinum (CP-9020284-EU)

CORSAIR SF Series 2024 SF750 80 PLUS Platinum Fully Modular Power SupplyCORSAIR SF Series 2024 SF750 80 PLUS Platinum Fully Modular Power Supply:Manufacturer : CORSAIRManufacturer Part No : CP-9020284-EUMarketing DescriptionThe CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts. Product Features

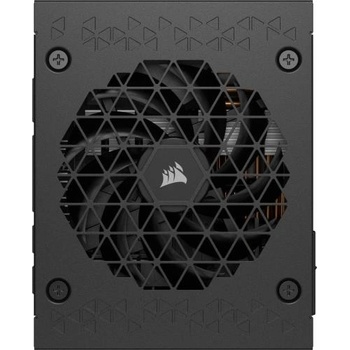

• 92mm PWM low noise cooling fan
  Utilizing PWM instead of the standard DC voltage control, the SF750 Platinum keeps noise low and delivers precise fan speed. The SF750 Platinum also utilizes a copper alloy heatsink, ensuring optimal thermal performance.
• Fully modular cables
  SF Platinum Series power supplies come equipped with premium, individually sleeved cables featuring a flexible paracord sleeve, ready to fit right into your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and improved flexibility.
• SFX-to-ATX bracket included
  SF Platinum Series power supplies include an SFX-to-ATX power supply adapter bracket enabling installation into any ATX compatible case.

GeneralDevice Type : Power supply - internalSpecification Compliance : ATX12V 3.1/ EPS12VPSU Form Factor : SFXLocalisation : EuropePower DeviceInput Voltage : AC 100-240 VFrequency Required : 47 - 63 HzPower Output Connectors Details : 1 x power 24 pin ATX
2 x power 8 pin EPS12V with detachable 4 pin ATX12V section
2 x 8 pin PCI Express power with detachable 2 pin section
8 x 15 pin Serial ATA power
3 x 4 PIN internal power
1 x 12VHPWROutput Voltage : +3.3, +5, +12 VPower Capacity : 750 WattOutput Current : +3.3V - 20 A
+5V - 20 A
+12V - 62.5 A
+5VSB - 3 AModular Cable Management : Yes80 PLUS Certification : 80 PLUS PlatinumMiscellaneousIncluded Accessories : Cable ties, SFX to ATX bracketCables Included : AC power cable
Power 24 pin ATX modular cable 30 cm
2 x power 8 pin +12V with detachable 4 pin section modular cable 40 cm
2 x 8 pin PCI Express power with detachable 2 pin section modular cable 40 cm
16-pin 12VHPWR power modular cable 40 cm
2 x power 15 pin SATA cable 45.5 cm
4 pin power modular cable 33 cmMTBF : 100,000 hoursCooling System : 92 mm fanFeatures : Overheat protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, Cybenetics PlatinumCompliant Standards : EMC, RoHS, UKCAManufacturer WarrantyService & Support : Limited warranty - 7 yearsEnvironmental ParametersMax Operating Temperature : 50 °CDimensions & WeightWidth : 12.5 cmDepth : 10 cmHeight : 6.35 cmTechnical data provided by third party. We assume no liability for errors within these data.
CORSAIR



.
