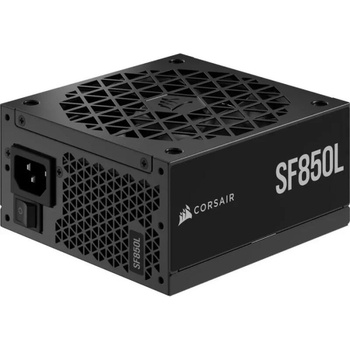

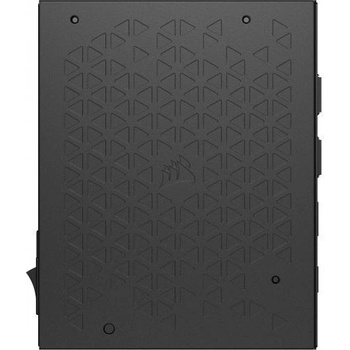

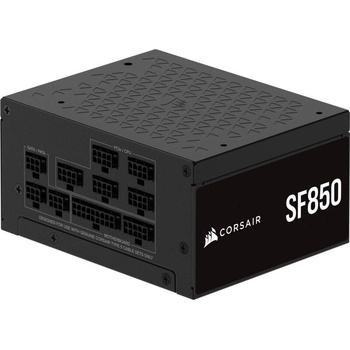

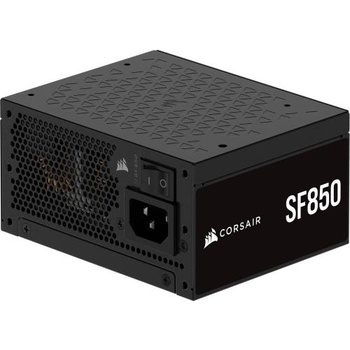

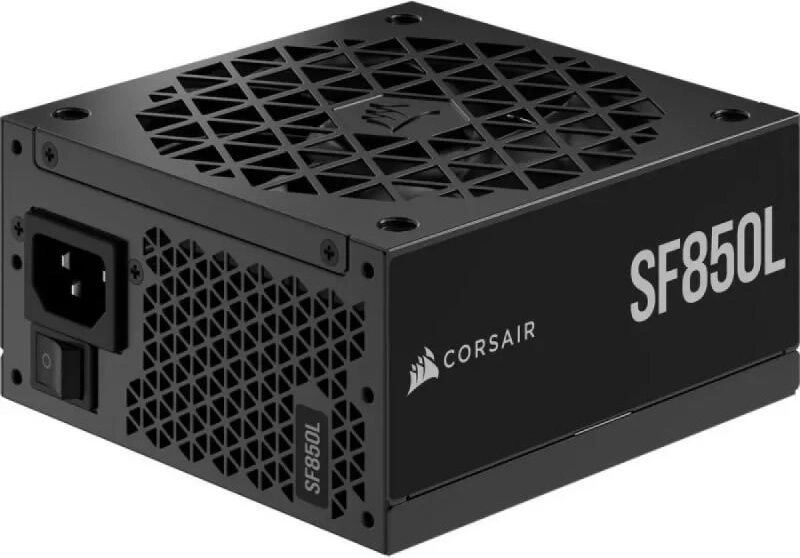

Corsair SF850 850W 80 PLUS Platinum (CP-9020256-EU)

Corsair SF850



50°C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power for your SFF PC, even under high-stress conditions.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.

QUIET OPERATION WITH ZERO RPM MODE

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.

Includes

• 80 PLUS Platinum rated efficiency
• ATX 3.1 compliant, supporting PCIe 5.1
• Fully modular, Type-5 Micro-Fit PSU connectors
• 92mm PWM cooling fan with Zero RPM mode



AC Input Rating

AC Input 100–240VInput Current 10A-5AFrequency 47~63Hz  Max Load Max Output+3.3V 20A 130W+5V 20A+12V 70.8A 850W+5VSB 3A 15WTOTAL POWER 850W



Cable listing

QTY

Cable

Connectors per cable

Total connectors

Connector spacing

Total length

Cable Type

1

Modular ATX Cable (24-pin)

1

1

-

300mm
(± 10mm)

Individually
Sleeved

2

EPS / ATX 12V 8-pin (4+4)

1

2

-

400mm
(± 10mm)

Individually
Sleeved

3

PCIe 8-pin (6+2)

1

3

-

400mm
(± 10mm)

Individually
Sleeved

1

12VHPWR (12+4) pin

1

1

-

400mm
(± 10mm)

Individually
Sleeved

1

SATA (4 Straight SATA)

4

4

100mm,
115mm,
115mm,
115mm

445mm
(± 10mm)

Individually
Sleeved

1

SATA (4 Right SATA)

4

4

100mm,
115mm,
115mm,
115mm

445mm
(± 10mm)

Individually
Sleeved

1

PATA (3 PATA)

3

3

100mm,
115mm,
115mm

330mm
(± 10mm)

Individually
Sleeved
