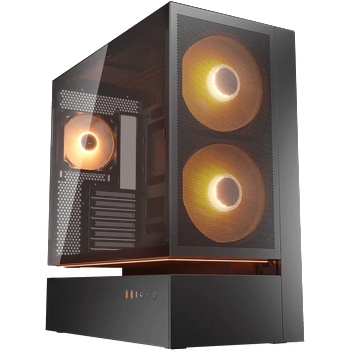

COUGAR CFV235 Mesh black (CGR-2DA4B-M)

Cougar Gaming CFV235 Mesh



True Free-Floating Structural Separation

Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.



270° Airflow Access Within Suspended Space

The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.



Smart Pogo Pin Connector

A pogo pin on the 3-in-1 module maintains physical contact with a counterpart built into the CFV case minimizing cabling without compromising critical power and signal relay.



Pre-Installed Dual 160mm ARGB PWM Fans

Let your build hit the ground running: dual 160mm ARGB PWM fans are pre-installed and assimilated into the 3-in-1 front panel module, saving you setup time and providing ready-to-go, optimum cooling.



The Rainbow In Between

The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.



Light. Speed

The CFV235 Mesh features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

Vertical Spatial Efficiency

The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.

Space Engineering

38mm of clearance behind the motherboard tray improves cable management , offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.



Dual Magnetic Filtration

Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Dust filters attach magnetically to protect the separated PSU cabin and main chamber from dust and other particles.

Just grab the protruding tag and pull: it’s that easy to clean the filter.



Versatile Compatibility

Compatible with reverse connector motherboards and accommodating GPUs of up to 400mm, the CFV235 Mesh is engineered for the gaming rigs of the future. A cover pulls triple duty as airflow guide, cable management facilitator and GPU holder which can be optimally placed according to motherboard specifications: this makes the most efficient use of available space by not only reducing cable clutter but improving performance stability.



Specifications



Case Form Factor Mid TowerMotherboard Type Mini ITX / Micro ATX / ATX / CEBDimensions (WxHxD) 235 x 493 x 460 (mm)
9.3 x 19.4 x 18.1 (in)I/O Panel USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button3.5" Drive Bay 22.5" Drive Bay 2+2 (converted from 3.5" drive bays)Expansion Slots 7Cooling Fan Support Front 160mm x 2Top 120mm x 3 / 140mm x 2Bottom 120mm x 3Rear 120mm x 1Pre-installed Fans Front 160mm ARGB PWM fan x 2Rear 120mm ARGB PWM fan x 1Speed 160mm ARGB PWM fan: 500-1200 ± 10% RPM
120mm ARGB PWM fan: 500-1400 ± 10% RPMConnector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)Maximun Number of Fans 9Water Cooling Support Top 360mm / 280mm / 240mm / 140mm / 120mmRear 120mmAurora LED Strip YesPWM and RGB hub Sync with M/B YesMax. Graphics Card Length 400mm / 15.7inMax. CPU Cooler Height 175mm / 6.9inMax. PSU Length 200mm / 7.9in
