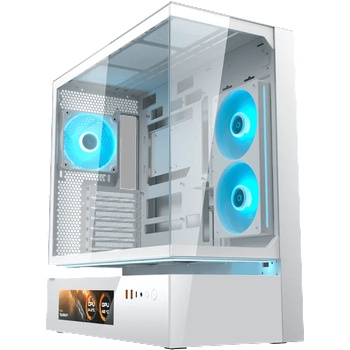

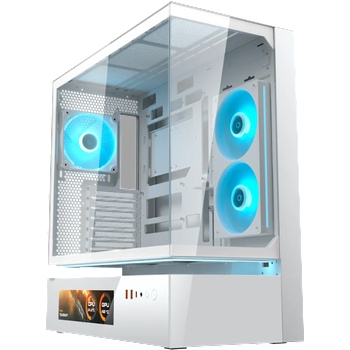

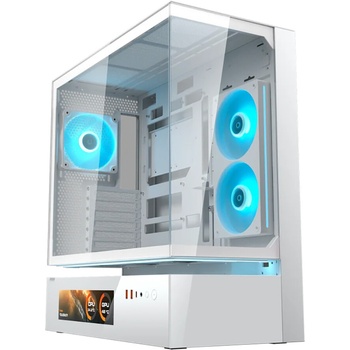

COUGAR CFV235 Vision White (CGR-2DA4W-V)

Cougar Gaming CFV235 Vision



True Free-Floating Structural Separation

Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.



270° Airflow Access Within Suspended Space

The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.



The Eye in the Machine

The CFV235 Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command center.

Pre Installed Reverse Blade
Unity ARGB 240 Fans

COUGAR Unity ARGB 240 single-frame PWM reverse-blade fans are preinstalled on the motherboard side, providing precise fan speed control, exceptional cooling, near-silent operation, and stunning RGB lighting straight out of the box.



The Rainbow In Between

The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.

Light. Speed

The CFV235 Vision features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.



Dual Magnetic Filtration

Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Just grab the protruding tag and pull: it’s that easy to clean the filter.

Dust filters attach magnetically to protect the separated PSU cabin and main chamber from dust and other particles.



Vertical Spatial Efficiency

The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.





Specifications



Case Form Factor Mid TowerMotherboard Type Mini ITX / Micro ATX / ATX / CEBDimensions (WxHxD) 235 x 493 x 460 (mm)
9.3 x 19.4 x 18.1 (in)9.16" LCD Monitor (1920 x 462 px) YesI/O Panel USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button3.5" Drive Bay 22.5" Drive Bay 2+2 (converted from 3.5" drive bays)Expansion Slots 7Cooling Fan Support Top 120mm x 3 / 140mm x 3M/B Side 120mm x 2Bottom 120mm x 3Rear 120mm x 1Pre-installed Fans M/B Side Unity 240 ARGB PWM Reversed fan x 1Rear 120mm ARGB PWM fan x 1Speed Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10%
120mm ARGB PWM fan: 500-1400 ± 10% RPMConnector 5V 3 Pin (ARGB) / 4 Pin PWM (Fan)Maximun Number of Fans 9Water Cooling Support Top 360mm / 280mm / 240mm / 140mm / 120mmRear 120mmAurora LED Strip YesPWM and RGB hub Sync with M/B YesMax. Graphics Card Length 430 (mm) / 16.9 (in)Max. CPU Cooler Height 175 (mm) / 6.9 (in)Max. PSU Length 200 (mm) / 7.9 (in)
