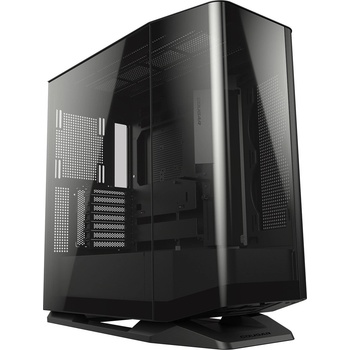

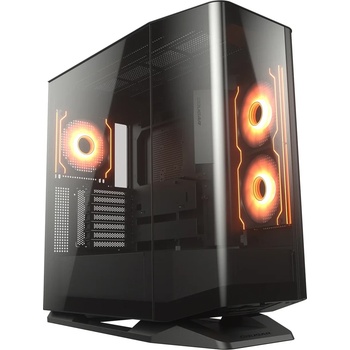

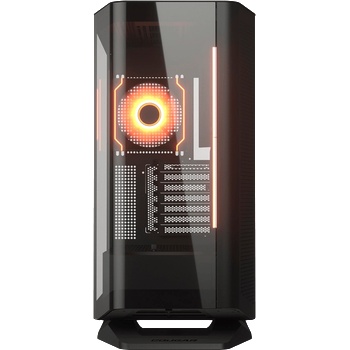

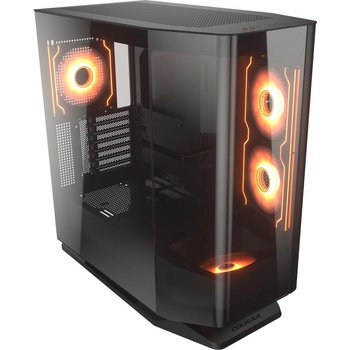

COUGAR FV270 Black RGB (CGR-58M6B-RGB)

Cougar FV270 RGB





Through A Glass Brightly

There is no mystery without illumination; no function without form.
The prism-inspired, polyhedral perimeter of the FV270 RGB mid-tower formed from tempered curved glass provides an unrivaled panoramic interior view of your build in full glory, while innovative angled cooling fan placements revolutionize airflow dynamics.
Facilitating backwards cable management and future-proofed for extreme builds with capacity to spare for bleeding-edge motherboards and GPUs, the FV270 RGB is anything but another brick in the wall.



Breathe

Harmonizing form with function, the FV270 RGB’s polyhedral design sets a new standard for airflow dynamics. Placing cooling fans on angled faces ensure uninterrupted, focused streams and the lifted front accesses an additional axis of ventilation, allowing air intake from below.



Prism of Light

The FV270 RGB offers an unparalleled panoramic view of the interior with a tempered, curved glass perimeter. Unlike rectangular cases, this prism-inspired design eliminates obstructive straight edges and vastly increases transparency, amplifying both visibility and lighting brilliance.



• Tempered, curved glass panoramic perimeter amplifies transparency and brilliance for an epic view.
• Angled cooling fan placements focus airflow in uninterrupted, continuous streams.
• Additional air intake accessed by lifted front.
• Reverse cable management eliminates clutter.
• Compatible with bleeding-edge E-ATX motherboards and accommodates 420mm GPUs, with rotatable brackets for horizontal/vertical orientation options.
• Strategically positioned and easily removable filters guard against dust.
• Easily detachable top and bottom brackets streamlines setup.





Cate gory DetailsProduct Name FV270 RGB (White)Case Form Factor Mid TowerMotherboard Support Mini ITX / Micro ATX / ATX / CEB / E-ATXDimensions (WxHxD) 268 x 530 x 512 mm10.6 x 20.9 x 20.2 inI/O Panel Type C Gen 2 x1, USB 3.0 x2, 4-Pole Headset Audio Jack, RGB Button3.5" Drive Bays 22.5" Drive Bays 2 + 2 (converted from 3.5" bays)Expansion Slots 7 (horizontal slots can be converted into vertical slots)Vertical GPU Support YesCooling Fan Support Top: 120mm x3 / 140mm x2M/B Side: 120mm x2 / 140mm x2PSU Shroud: 120mm x2 / 140mm x2Bottom: 120mm x1Rear: 120mm x1 / 140mm x1Pre-installed Fans M/B Side: 140mm Reversed ARGB PWM x2Bottom: 120mm Reversed ARGB PWM x1Rear: 140mm ARGB PWM x1Fan Speed Range 500 (±200) – 1200 (±10%) RPMFan Connectors 5V 3-Pin (ARGB) / 4-Pin (Fan)Maximum Fans Supported 9Water Cooling Support Top: 360 / 280 / 240 / 140 / 120 mmM/B Side: 280 / 240 / 140 / 120 mmPSU Shroud: 240 / 120 mmRear: 140 / 120 mmPWM & RGB Sync Yes, sync with motherboardMax GPU Length Horizontal: 420 mm (16.5 in) with only fans at M/B side330 mm (13 in) with radiator & fans at M/B sideVertical: 450 mm (17.7 in)Max CPU Cooler Height 180 mm / 7.1 inMax PSU Length 250 mm / 9.8 in
