COUGAR GDN-850 850W

Cougar Gaming GR 850

Designed for the Next Generation of GPUs

The COUGAR GR series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.

Notice: Before using the PCIe 12+4pin cable, please visit  the GPU manufacturer’s official website to check recommended wattage requirements.

600mm

More Stability, Less Noise

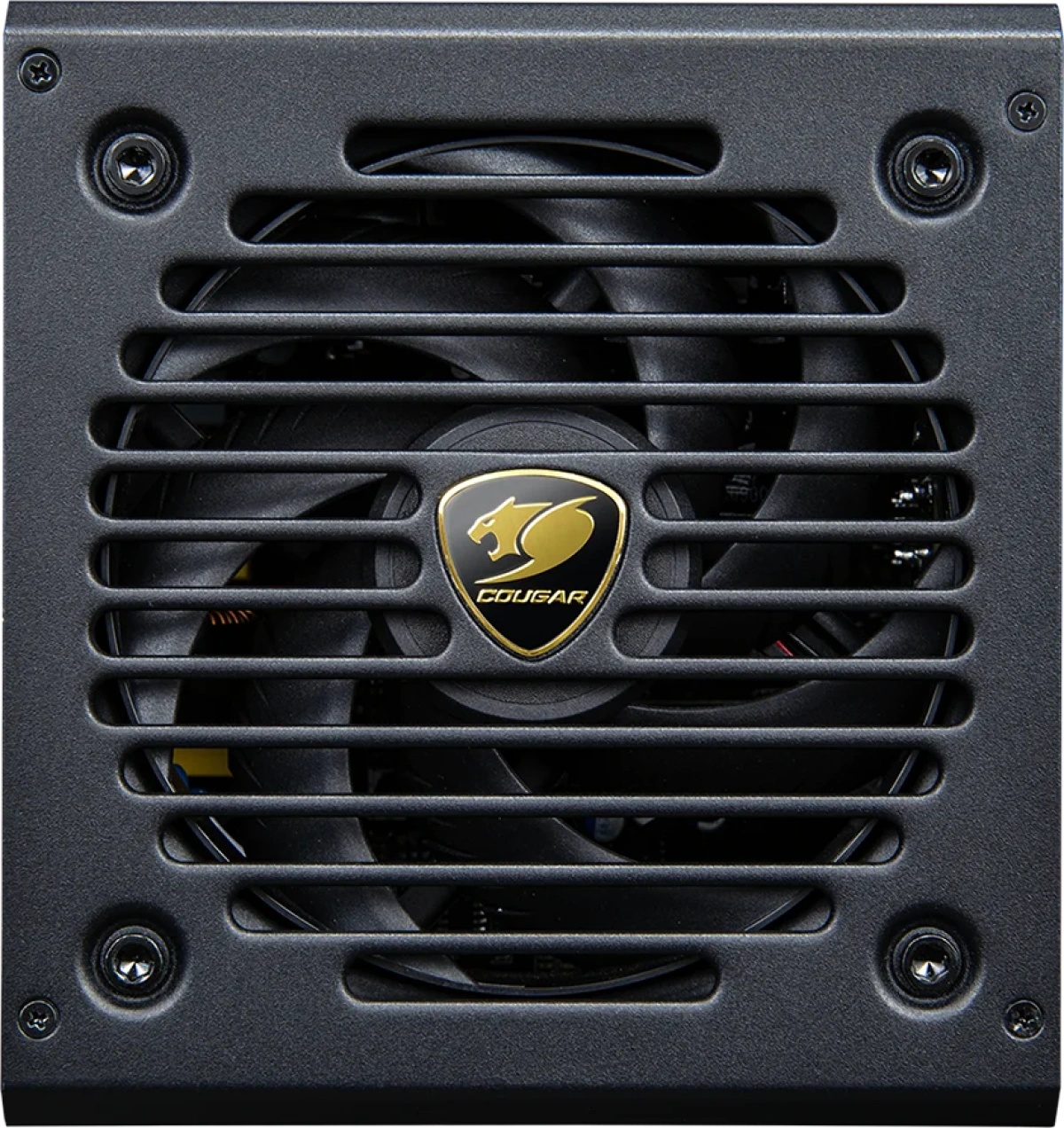

Crafted for quiet operation, COUGAR’s exclusive 120mm rifle bearing fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.

• The GR’s LLC, DC-DC and Tri-Sense (3.3V, 5V, and 12V) design provides high-quality outputs, with an extremely tight 5% voltage regulation to deliver ultra-stable operation.
• Optimally perform in 40ºC working temperature environments.

Stylish Design

Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

Fully Modular Cables / Embossed black cables

Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.

Features

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector

Connect the 12V-2X6 with true 200% power excursion dynamic outputs.

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill.

Compact PSU Size

120mm length fits most PC cases and makes installation easy.

Japanese Main Capacitors

Highly durable and consistently reliable 105°C Japanese main capacitors.

Full Protections

SCP, OCP, OVP, UVP, OPP, OTP

Silent Spin

Groundbreaking grooved blade, rifle bearing fan design lets you experience noiseless gaming.

Compatible with The Lastest PC Technology

Created for user with current and next-generation multi-core CPU platforms.

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature.

AC Input

AC100-240V~
50-60Hz 10A Max.

DC output

Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

OTP (Over Temperature Protection)

If the temperature gets too high, the PSU automatically switches off.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
