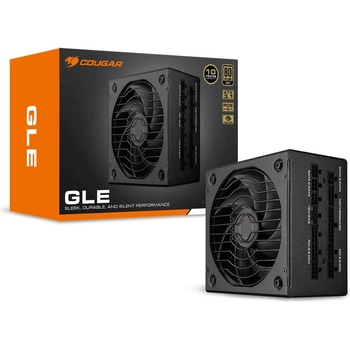

COUGAR GLE 1000W 80 PLUS Gold (31GF010001P01)

GLE 1000

Sleek, Durable, and Silent Performance

The COUGAR GLE series boasts high-quality 80 PLUS Gold certification, achieving up to 91% conversion efficiency. Utilizing a native PCIe 12V-2X6 connector design, this power supply delivers power to next-gen graphics cards through a single 12+4-pin cable, bringing them into compliance with Intel’s ATX 3.1 standard. With flawless power delivery in 40°C environments, it saves energy, reduces electricity costs, and provides stable power to all components.

• Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs.
• 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills.
• Durable HDB Fan with an integrated stabilizing ring lets you experience noiseless gaming.
• 100% Refined Japanese Capacitors for outstanding component longevity in the PSU.
• Fully Modular Power Supply Unit allows you to connect only the cables you need, reducing clutter and improving airflow.
• Compatible with the Latest PC Technology, designed for users with current and next-generation multi-core CPU platforms.
• Powerful performance even at 40°C ambient temperature.
• Platinum Cybenetics rating for efficiency (1000W only)
• A- Cybenetics rating for noise level. (1000W only)





ATX 3.1 Certified

Designed to support next-generation systems, the COUGAR GLE series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating and Cybenetics Platinum certifications (1000W only), it offers high-quality stability, durability, and reliability.





Designe d for the Next Generation of GPUs

The COUGAR GLE series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 650mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adaptor.



Features

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector

Connect the 12V-2X6 with true 200% power excursion dynamic outputs.

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill.

Durable HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels.

100% Refined Japanese Capacitors

Outstanding components extend the longevity of PSU.

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow.

Silent Spin

Durable HDB Fan with an integrated stabilizing ring lets you experience noiseless gaming.

Compatible with The Lastest PC Technology

Created for user with current and next-generation multi-core CPU platforms.

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature.



SpecificationsModel Name AC Input DC output+3.3V +5V +12V -12V +5Vsb TotalGLE 1000 AC100-240V~
50-60Hz 15-7.5A 20A 20A 83.3A 0.3A 3A 1000W120W 1000W 3.6W 15WConnector Main CPU Peripherals S-ATA 12V-2X6 PCI-EPins 24(20+4) 8(4+4) 4 5 12+4 8(6+2)GLE 1000 1 2 4 12 1 6
