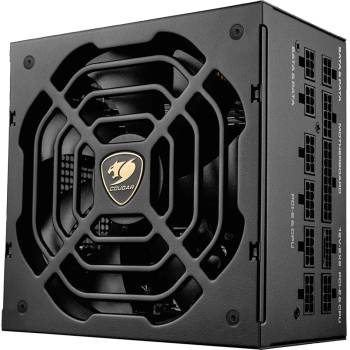

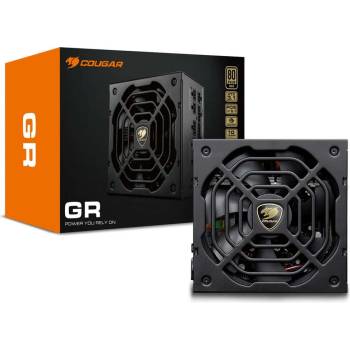

COUGAR GR 1000 80 PLUS Gold

GR 1000W

POWER YOU RELY ON

The COUGAR GR 1000 is an 80 PLUS Gold-certified power supply, delivering reliable performance even at 40°C. Designed with a native PCIe 12V-2X6 connector, it meets Intel ATX 3.1 and PCIe 5.1 standards. As a modular PSU, it efficiently supports next-gen GPUs with a single 12+4-pin cable, reaching up to 91% efficiency. This reduces energy consumption, lowers electricity costs, and ensures stable power delivery.

• Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs.
• 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills.
• Durable Fluid Dynamic Bearing Fan lets you experience noiseless gaming.
• 100% Refined Japanese Capacitors for outstanding component longevity in the PSU.
• Designed for current and next-generation multi-core CPU platforms, compatible with the latest PC technology.
• Powerful performance even at 40°C ambient temperature.
• Full Protections with UVP, OCP, SCP, OTP, OVP, OPP
• Platinum Cybenetics rating for efficiency (1000W only)
• A+ Cybenetics rating for noise level. (1000W only)
• The GR 1200/1000 is protected by a 10 year warranty with a build quality second to none.





ATX 3.1 Certified

Designed to support next-generation systems, the COUGAR GR 1200/1000 conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With an 80 PLUS Gold efficiency rating, it offers high-quality stability, durability, and reliability.



Stylish Design

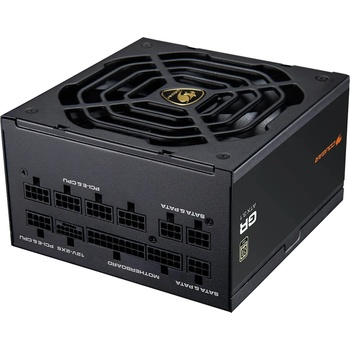

Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

ATX Version ATX3.1PFC Active PFCInput Voltage 100-240VACInput Current 15-8AInput Frequency 50-60HzDimensions (LxWxH) 150 x 150 x 86mmFan Size 140mmFan Bearing Fluid Dynamic BearingFan Speed 1900RPM80 PLUS Rating 80 PLUS GoldOperating Temperature 40℃MTBF >100,000 hours @ 25℃Protections OCP / OVP / SCP / OTP / OPP / UVPRegulatory CB/CCC/FCC/TUV/cTUVus/EAC/CE

AC input & DC output rating

Product Name AC Input DC output+3.3V +5V +12V -12V +5Vsb TotalGR 1200 100-240VAC 15-8A
50-60Hz 20A 20A 100A 0.4A 3A 1200W100W 1200W 4.8W 15WGR 1000 100-240VAC 15-8A
50-60Hz 20A 20A 83.3A 0.4A 3A 1000W100W 999.6W 4.8W 15W

Total Connectors

Product Name Main
24 Pin CPU
4+4 Pin Peripheral S-ATA 12V-2X6
12+4 Pin PCI-E
6+2 PinGR 1200 1 2 3 9 1 6GR 1000 1 2 3 9 1 3
