Cudy AP1300

Cudy AP1300 Outdoor















Speedy Dual-Band AC1200 Wi-Fi

With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.

Boosted Wi-Fi Coverage with Beamforming

Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

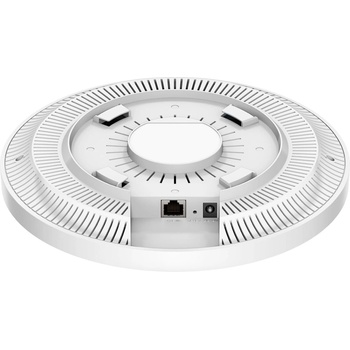

Gigabit Port with Two PoE Options

Supports two powering methods—
● 802.3at/af PoE (Max power: 11 W, Idle: 7.5 W)
● 24-57 V Passive PoE (Adapter included, not waterproof)
If you need to simplify the wiring, we recommend using a PoE Switch that powers multiple devices simultaneously.







Tech specs:

Hardware Features Highlights CPU: 880 MHz Dual-Core ProcessorFlash: 16 MB (128 Mbit)DDR: 128 MB (1 Gbit)Interface 1× Gigabit Ethernet (RJ-45) Port  (Support IEEE802.3af PoE and Passive PoE)1× Reset ButtonPower Supply 802.3af/at PoE24-57 V Passive PoE (+4,5pins; -7,8pins)Dimensions ( W×D×H ) 240×100×53.7mmAntenna Type 2× Detachable Omni-directional AntennasMounting Pole/Wall Mounting (Kits included)Wireless Function Wireless Standard: Wi-Fi 5 (802.11ac/n/g/b/a)Frequency: 5 GHz, 2.4 GHzSignal Rate:  5 GHz: Up to 867 Mbps2.4 GHz: Up to 300 MbpsBandwidth 20/40/80 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway)

(Features with ** require a Cudy WR1300 or Cudy AC as the gateway)

(Features with △ require a Cudy Mesh router/Mesh unit or Cudy AC as the gateway)

Multiple SSID * Captive Portal **Seamless Roaming Mesh△Self-Organizing Mesh△Band Steering*Auto Channel Optimization*Enable/Disable Wireless RadioTransmit Power Control QoS (WMM)MU-MIMOBeamformingRate LimitReboot ScheduleWireless ScheduleWireless Encryption WPA-PSKWPA2-PSKWPA-PSK/WPA2-PSKSecurity Access ControlMac FilteringWireless Isolation ClientsWeather-Proof Dust/Water-Proof IP65 (Protection against any dust and low-pressure water from any directions)Lightning Protection 4 KV Lightning/Surge protection at the Ethernet portESD 8 KV Contact / 15 KV Air ESD protectionWorking Temperatures

-20/60°C

Extend -40/65°C (Booted up in advance. Performance may drop slightly. )

Operating Mode Access PointWi-Fi RouterRange ExtenderWISPMeshEnvironment Operating Temperatures: -20~60 °C ext. -40~65 °CStorage Temperature: -40–70 °COperating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensingSystem Requirements Operating system that supports network/Wi-Fi connectivity, such as Windows, Android, macOS, iOS, or Linux
