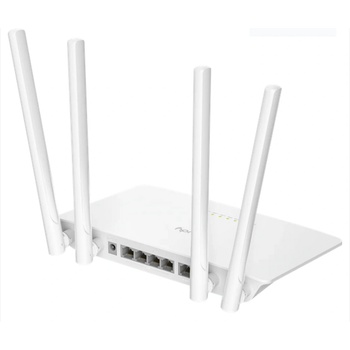

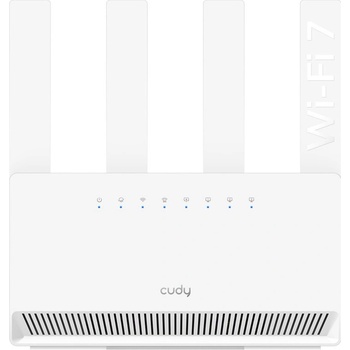

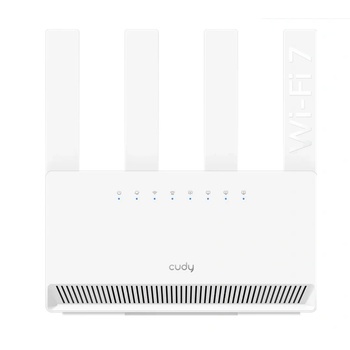

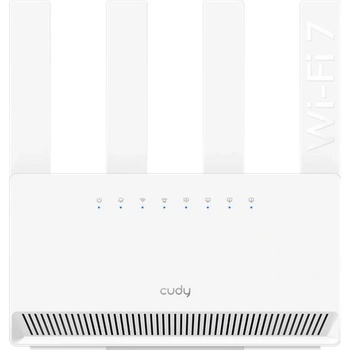

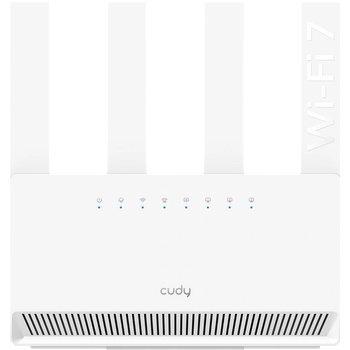

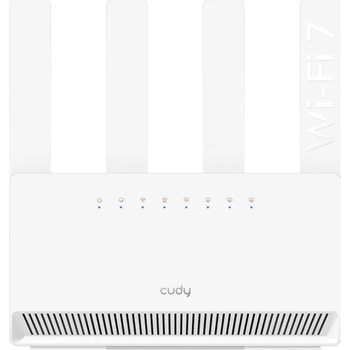

Cudy BE3600 (WR3600E)

Cudy WR3600E





Powerfu l Quad-Core CPU

Feel the instantaneous response and smooth operation when browsing, streaming, and gaming, even when connecting numerous devices. The advanced Quad-Core CPU and 512 MB large RAM provides big bump in processing power with higher capacity.







Connect 200 Devices and Stay Fast

The upgrade OFDMA in Wi-Fi 7 features Multi-RU that provide 25 smarter frequency allocation to improve capacity. The Preamable Puncturing technology makes the most of available channel resources to keep connections fast regardless of interference in other channels.



Cudy Mesh

Create same-name Wi-Fi coverage throughout your home and enjoy fast roaming between Wi-Fi zones. Compatible with other Cudy Mesh routers and repeaters.

*Requires future auto firmware upgrade



Parental Control

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.



Hardware Specs

CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR3LWireless 5 GHz Wi-Fi Speed 2882 Mbps  2.4 GHz Wi-Fi Speed 688 Mbps  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 4× Fixed  5 GHz Antenna Gain Max 6.8dBi  2.4 GHz Antenna Gain Max 5.2dBi  FEM or PA/LNA

• 5 GHz: 2× External
• 2.4 GHz: 2× Internal

  Beamforming True  Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces Gigabit RJ45 Ports 4  Ethernet Notes 1× WAN port, the rest are LAN ports  LED

• System
• Internet
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• WAN
• LAN
