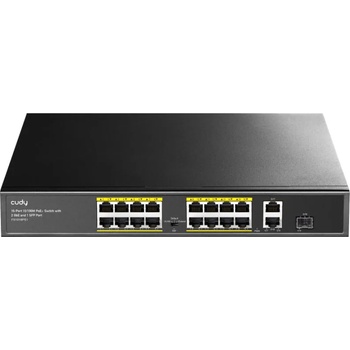

Cudy FS1018PS1

Cudy FS1018PS1

● 200 watts PoE power supply, up to 30 watts per port

● 2 10/100/1000M uplink ports +1 SFP Port

● 16 10/100M PoE+ ports

● CCTV mode support remote PoE feeding up to 250m

● VLAN mode isolate each PoE Ports for security

● IEEE 802.3at / IEEE 802.3af standard compliant

● Plug&play, simple setup with no configuration needed

● Watchdog reactivates the abnormalPD by resuming POE power



200 W Power budget & 30 W Maximum One Port

Supports a total PoE power of 200 W and up to 30 W for one PoE port. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.

Watchdog guarantees uninterrupted operation of the PoE devices

The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

Plug&Play, Fanless design

Plug and Play, Easy of use. Fanless design for silent operation. Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+), 3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business

Specifications:

Mode
FS1018PS1

Power
Power Supply
Built-in power supply

Voltage Range
AC100~240V

Consumption
190W for 16 PoE

Ethernet
Speed
1~16 Port: 10/100/Mbps

G17~G18 Port:10/100/1000Mbps

G19 Port: SFP 1.25bps

Transmission Distance
100Meter(328ft)for RJ-45

The distance is determined by the optical module

The optical module is optional

Network

Switch
Ethenet Standard
IEEE 802.3 802.3u 802.3ab 802.3af/at

Switching Capacity
7.2G

Transfer Rate
14880 pps for 10Mbps

148800 pps for 100Mbps

1488000 pps for 1000Mbps

MAC Adsress
4K MAC sddress table

Link/ACT
On(Green)
The port is connecting

Blinks
The port is receiving or transmitting data.

Off
The port is notl inked successfully with the device

POE
On(Oranfe)
PD is connected

Off
No PD is connected or power forwarding fails

PoE Pin Assignmnet
V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)

Environment
Working Temperature
 0~40°C

Storage Temperature
-40~70°C

Humidity Non Condesing
0~85%

Mechanical
Dimension L*W*H
280*180*44mm

Color
Gray
