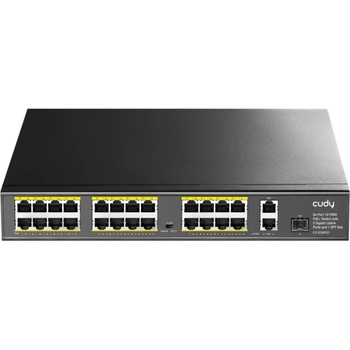

Cudy FS1026PS1

Cudy FS1026PS1















Sp ecifications:

Connector Type 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP SlotNetwork Protocols

IEEE802.3

IEEE802.3u

IEEE 802.3ab

IEEE802.3x

IEEE802.3 z

PoE Parameters PoE Standard: IEEE802.3af /IEEE802.3at

Max each port: 15.4W ( IEEE 802.3af )

Max each port：30W ( IEEE 802.3at )

PoE compatibility: IEEE 802.3af/at adaptivePoE port output: DC48-55VPower Pin : Power over spare pairs 1/2(+) , 3/6 (-)Network Media

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

1000BASE-TX: Cat5 or more UTP (≤100 meter)

Optical

MultiMode Fiber: 850nm, 1310nm,

Transmission Distance: 550m/2Km

Single-Mode Fiber: 1310nm, 1550nm,

Transmission Distance: 20/40/60/80/100/120km

Performance Specification Bandwidth: 10.8GbpsMAC Address: 2KPacket Buffer Memory: 1MPacket Forwarding Rate: 8MppsForwarding Mode: Store-And-ForwardPower Supply

Product Input Voltage: AC100-240V 50/60Hz

Power Budget: 300W

Led indicator PWR Power supply indicator
(Red)

Lighting：Powered

Un-Light：N o Power

Led indicator SW DIP indicator
(Green) OFF: Normal
Vlan: Lighting
Extend: Slow flash1-27 RJ-45 ACT indicator
(Green) Lighting：Connecting
Flashing：Data Transmit
Un-Light：DisconnectWorking Environment Operating Temperature: -20℃ ~ 50℃;Storage Temperature: -40℃ ~ 85℃;Operating Humidity: Max 90%, non-condensingStorage Humidity: Max 95%, non-condensingWorking Height: Max to 10,000 feet (3,000 meters）Storage Height: Max to 10,000 feet (3,000 meters)Physical Parameter Product Dimension (L*W*H): 320mm*210mm*46mmPackage Dimension (L*W*H): 375mm*270mm*85mmN. W: 1.9KGG. W: 2.4KGMTBF 100,000 hours
